Packaging Used Shaking Test Machine Mobile Phone Vibration Tester Mechanical Shock And Vibration Testing Equipment
Packaging Used Shaking Test Machine Mobile Phone Vibration Tester Mechanical Shock And Vibration Testing Equipment
Accelerated Shock Tester Technical Parameters:
| Model | MS-50 | MS-100 | MS-200 | MS-500 | MS-800 | |
| Load capacity (kg) | 50 | 100 | 200 | 500 | 800 | |
| pulse acceleration( m/s2) | 50~1200 | 50~1000 | 50~1000 | 50~500 | 50~500 | |
| Pulse Width (ms) | 20~3 | 20~3 | 20~3 | 20~3 | 20~3 | |
| Frequency (times /min) | 10~80 | 10~80 | 10~80 | 10~80 | 10~80 | |
| Table Size (mm) | 500X700 | 700X700 | 700X700 | 800X800 | 1000X 1000 | |
| Max. Dropped Height (mm) | 60 | 60 | 60 | 60 | 60 | |
| Pulse Type | Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional) | |||||
| External Dimension WXHXD (mm) |
800X1300X1000 |
800X1300X1000 |
850X1350X1100 |
1000X1300X1900 |
1000X1300X1900 |
|
| Weight (Kg) | 1100 | 1250 | 2000 | 3000 | 3500 | |
| Protection Device | Door protection, over-load protection, zero signal protection | |||||
| Power | AC 220V(±10%), 1 phase 3 Lines ,50/60HZ; AC 380 V(±10%) ,3 phase 5 Lines,50/60HZ | |||||
| Environmental Conditions | Temperature: 25℃±5.0℃ humidity: <85%(25℃) |
|||||
Application of mechanical shock test eqipment:
Mechanical Shock and Impact Test Machine, Half Sine Wave Accelerated Shock Tester is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.

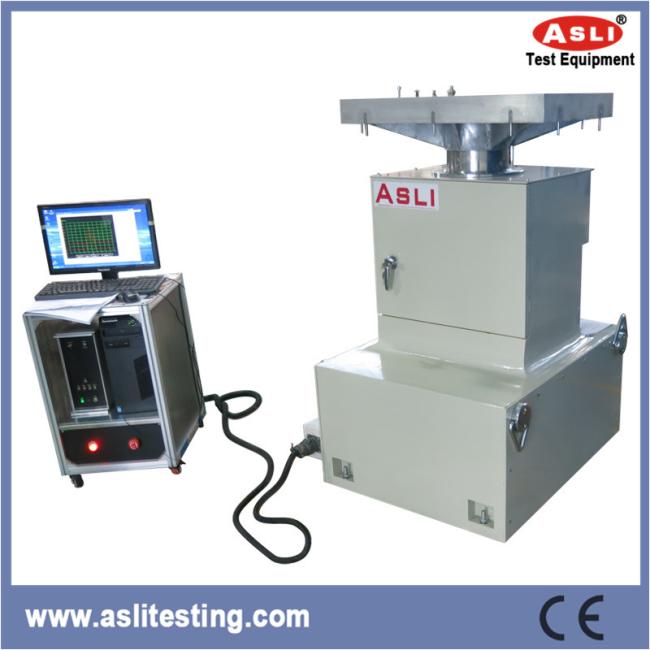

Shock Test bench
Shock and measure controller
mechanic shock tester Features:
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.
Our advantages
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products.
Our concept
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.
Customers' Visit ASLi Company:
If you are interested in those mechanical acceleration shock test system , please contact with us ,thank you .
