Solar Product Testing UV Light Simulation Accelerated Weathering Aging Testing Chamber
Solar Product Testing UV Light Simulation Accelerated Weathering Aging Testing Chamber
Application:
Hot Sales Rubber Aging Test Chamber / UV Lamps Testing Equipment / UV Lamp Equipment simulated sunlight damage on the material and product test, widely used in the evaluation of material climate resistant.
Solar Product Testing UV Light Simulation Accelerated Weathering Aging Testing Chamber technical parameters:
| Model | UV-230 | |
| Internal Dimension WxHxD (cm) | 115x50x40 | |
| External Dimension WxHxD (cm) | 150x150x55 | |
| Applicable Standard | GB/T16422,GB/T5170.9 | |
| Temperature Range | R.T.+10℃~+70℃ | |
| Temperature Fluctuation | ±0.5℃ | |
| Humidity Range | ≥95%R.H. | |
| Environmental Temperature for Use | +5℃~+35℃ | |
| Test Light Source | UVA,UVB UV light | |
| Wave Length of Test light Source (nm) | 280~400 | |
| Center Distance between Sample and Tube (mm) | 50±2 | |
| Center Distance Between Tubes (mm) | 75±2 | |
| Material of Internal Case | Stainless steel with sanding polish | |
| Material of External Case | Stainless steel with sanding polish or painting coated | |
| Heating and Humidifier | Electric-heat type steam generator ,heating and humidification | |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type | |
| Input | Black panel thermometer.PT-100 Sensor | |
| Standard Configuration | 1 pc Stainless steel shelves | |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection | |
| Power | AC220V 1∮ 3 lines, 50HZ | |
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Hot Sales Rubber Aging Test Chamber / UV Lamps Testing Equipment / UV Lamp Equipment is our star products , and we had obtained the CE certification for this machine .
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Hot Products:
Certificate of these the machine:
China official 3rd party calibration report
CE certiification

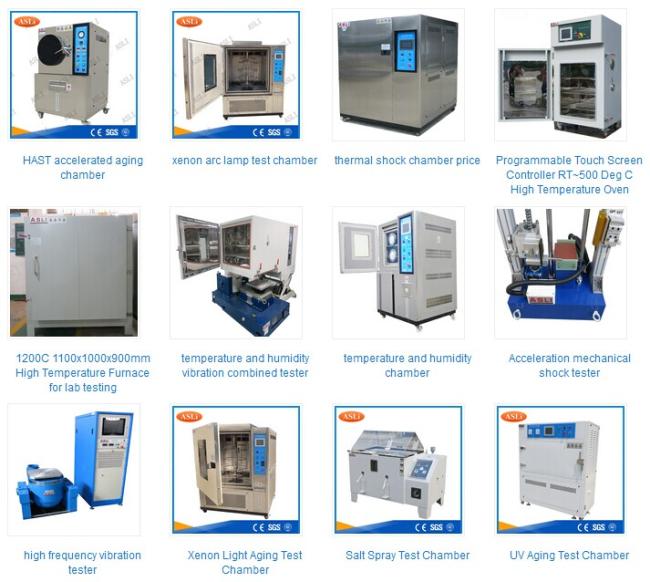

ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Hot Sales Rubber Aging Test Chamber / UV Lamps Testing Equipment / UV Lamp Equipment, Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
