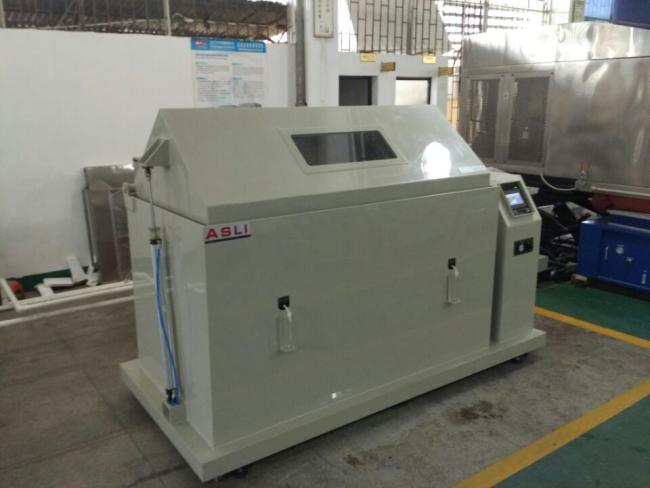

Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing

Price Negotiable

Price: Negotiation

MOQ: 1units

Delivery Time: Negotiable

Brand: ASLI

Product Description

Temperature Humidity Combined Environmental Test Systems for corrosion testing

Accessories with Temperature Humidity Combined Salt spray test chamber :

sample Shelf/sample stick 4 pcs each

1 pc brine mixing barrel; 1 pc standard measuring cup; HP test paper

3.1 pc dry bulb cup

4.1 pc 80cm2 collector

1 pc glass spray nozzle

1 pc Wet bulb cup

1 set fog dispersal system

1 pc meter regulator

reagent Nacl 2 bottles (500 g/bottle)

1 pc Air compressor ( Optional )

Technical sheets with salt spray test chamber :

Model	THSH-2000-B
Internal Dimension	2000×1000×1000(W×D×H) mm
External Dimension	3000×1500×1950(W×D×H)mm
Cabinet capacity	2000L
Controlled parameters	Temperature , relative humidity, Salt fog
Drying temp. range	Ambient to +75 deg C
Humidity temp. range	Ambient to +60 deg C
Humidity range (with dehumidify device)	15% to 95% R.H adjustable(Temp.60deg C ~ 75deg C) 60% to 95% R.H adjustable(Temp.30deg C ~ 75deg C)
Salt fog fallout rates	rates adjustable from 0.5 to 2.5ml per 80cm2 per hour
Chamber material	P.V.C rigid plastic boar
Spraying method	Continuous and Programmable spray type
Temperature Rising/Falling Speed Rate:	From R.T.( 25 Deg C) ~ 75 Deg C, needs about 30 mins, ( approx. 2.0 Deg C /min) From 70 Deg C ~ 30 Deg C, needs about 40 mins, ( approx. 1.0 Deg C /min)
Accuracy	Temperature 0.1 Deg C ; Humidity 0.1 %;
Control Accuracy	Temperature ±0.5 Deg C; Humidity ± 2.5%R.H.
Uniformity	Temperature: ± 3.5 Deg C Humidity ±3.0% R.H(when humidity is 75%～98%); 　　　 ±4.0% R.H(when the humidity is 30%～75%);
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection

Salt Spray Temperature (Able to set constant temperature control)

(A)Saline Test : NSS,ACSS

1. Testing Chamber : 35 Deg C (+/-)2 Deg C

2. Saturated Air Bucket: 47 Deg C (+/-)2 Deg C

(B) Corrosion Test: CASS

1. Testing Chamber Temperature: 50 Deg C (+/-) 2 Deg C

2. Saturated Air Bucket: 63 Deg C (+/-)2 Deg C

Spray Method of salt spray testing equipment

Absorb brine to atomization, uniform atomization degree, to ensure continuous testing standard.
Precise Glass Spray Nozzle: made of special glass,able to adjust spray volume and spray angle, ensure without salt crystal blocking working withing 5000 hours and fog uniformly.
Fog Spray quantity: adjustable type 1-2ml(ml/80cm2/h) (average quantity of 16 hours)
