1, the maximum pulling force: 5kg-300kg
2, load resolution: 0.01kg
3. Force measurement accuracy: within ±0.5% of the indicated value
4, display, setting mode: LCD display, digital display real-time force, maximum force, rupture value, elongation, tensile strength (kg / cm2) = rupture value (kg) / test piece cross-sectional area (cm2). Membrane button settings
5, the maximum force value: can store 10 sets of data
6, unit switching: Kg, lb, N (interchangeable)
7, data sampling frequency: 200times / sec
8, test machine resolution: maximum load 1 / ± 25000 yards, internal and external non-file, and the entire resolution is unchanged
9. Pulling induction mode: high-precision sensor is load-bearing element
10, the maximum stroke: 800mm
11, test speed: 25-500mm / min (adjustable, digital display)
12. Displacement measurement accuracy: within ±0.5% of the indicated value
13. The breakpoint ratio is set to 0-99%, and the user can set the appropriate breakage time according to different materials.
14. Safety device: upper and lower stroke limit device, overload protection (10% maximum load, automatic machine protection)

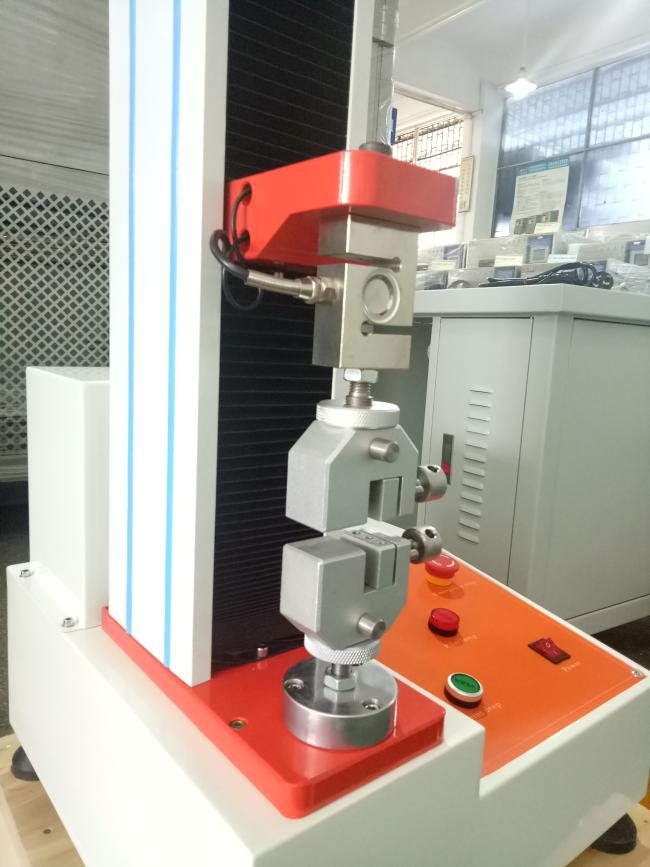

15. Fixture configuration: one set of stretching fixtures (the most ideal test fixture can be designed according to your company's products)
16, print display: optional micro printer can print the date, maximum force, average force and other data

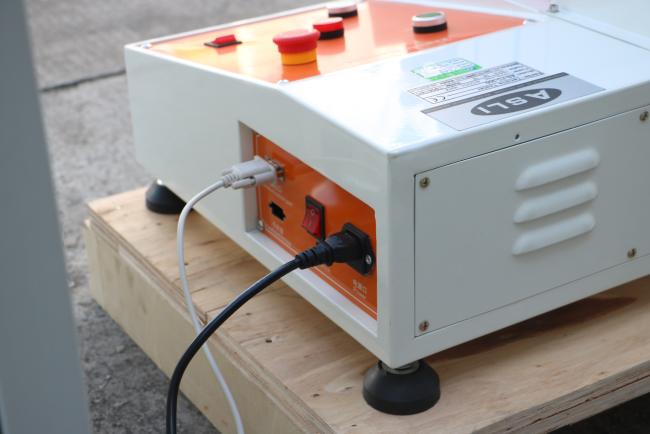

17, working power: AC220V, 50Hz, 5A
