Sine On Random Vibration Test System Electromagnetic Vibration Test Equipment
Sine on Random Vibration Test System Electromagnetic Vibration Testing Equipment
Our service
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
SPECIFICATIONS OF Sine on Random Vibration Test System Electromagnetic Vibration Testing Equipment:
|
Sine on Random Vibration Test System Electromagnetic Vibration Testing Equipment |
|||||||||
| Model | Rated Sine Force (N) |
Rated Random Force (N) | Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed (m/s) | Rated displacement (p-p) mm |
Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
Product Application for Sine on Random Vibration Test System Electromagnetic Vibration Testing Equipment
Vertical Vibration Chinese Vibration Climatic Chamber for Rubber Plastic Parts is perfect for the vibration testing for the household goods, electronic products, car parts, and so on.
high frequency vibration tester can meet the testing standards such as MIL, ASTM, IEC, ISO,BS, JIS.
It have the big diameter moving coil, equipped with high strength direction guiding, so that can use all kinds of additional table to do different kind of parts and products testing, and can get good vibration transmissibility. The testers can easily to fulfill the small parts testing need, including the transportation simulating testing, integrating vibration testing, and the earthquake simulating testing.
Main Features about Sine on Random Vibration Test System Electromagnetic Vibration Testing Equipment:
1) Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2) Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3) Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4) Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
6) New duct design and enhance the cooling effect.

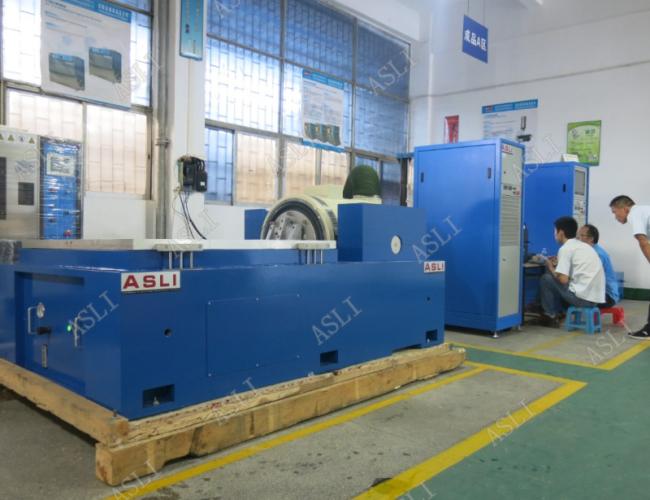

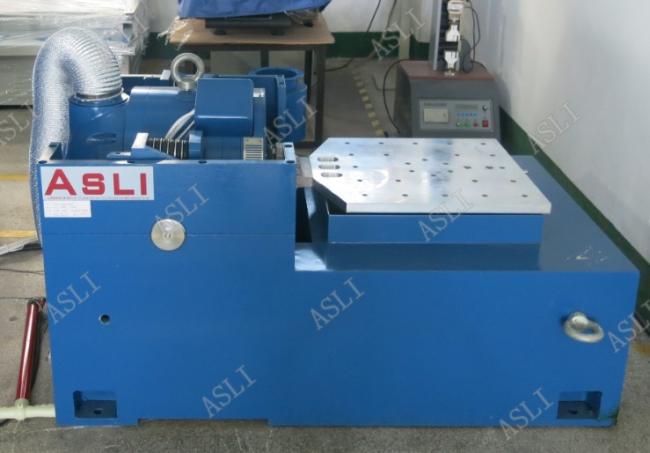

Horizontal + Vertical Vibration Test Bench Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.
Welcome our new and regular customers visit our factory Sine on Random Vibration Test System Electromagnetic Vibration Testing Equipment, and any inquiries please feel free to contact us !
