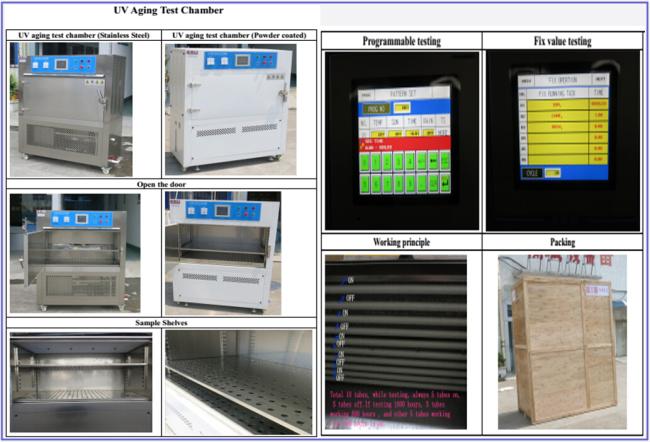

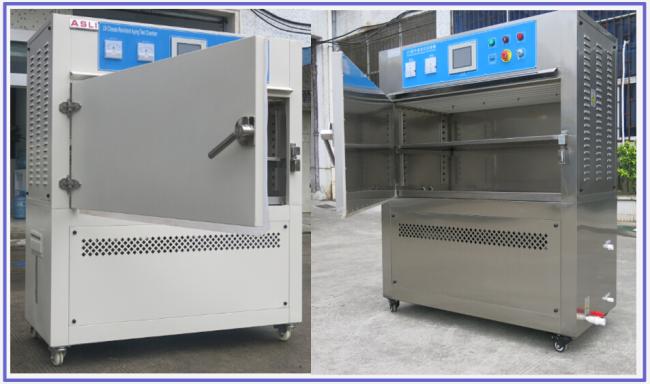

UVA UVB UV Aging Stability Test Chamber , Climate Resistant UV Testing Equipment
UV Aging Stability Test Chamber , Climate Resistant Uv Testing Equipment
Application:
UV Aging Stability Test Chamber , Climate Resistant Uv Testing Equipment is simulated sunlight damage on the material and product test, widely used in the evaluation of material climate resistant.
Climate Resistant UV Chamber Technical Parameters:
| Model | UV-290 | |
| Internal Dimension WxHxD (cm) | 115x50x50 | |
| External Dimension WxHxD (cm) | 140x160x75 | |
| Applicable Standard | GB/T16422,GB/T5170.9 | |
| Temperature Range | R.T.+15℃~+70℃ | |
| Temperature Fluctuation | ±0.5℃ | |
| Humidity Range | ≥95%R.H. | |
| Environmental Temperature for Use | +5℃~+35℃ | |
| Test Light Source | UVA,UVB UV light | |
| Wave Length of Test light Source (nm) | 280~400 | |
| Center Distance between Sample and Tube (mm) | 50±2 | |
| Center Distance Between Tubes (mm) | 75±2 | |
| Material of Internal Case | Stainless steel with sanding polish | |
| Material of External Case | Stainless steel with sanding polish or painting coated | |
| Heating and Humidifier | Electric-heat type steam generator ,heating and humidification | |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type | |
| Input | Black panel thermometer.PT-100 Sensor | |
| Standard Configuration | 1 pc Stainless steel shelves | |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection | |
| Power | AC220V 1∮ 3 lines, 50HZ | |
UV Aging Test Chamber Principle and Usage:
1 UV aging tester adopts fluorescent UV lamp as light source, by simulating natural light's ultraviolet (UV) radiation and condensation, accelerated resistant climate test was carried out on the material, in order to obtain material weatherability.
2 UV resistant climate chamber can simulate the ultraviolet ray in natural climate, rain, high temperature, high humidity , condensation and dark, etc., environmental conditions,by reproduce these conditions, merged into a loop, and have it automatically complete cycles, this is the working principle of ultraviolet aging test chamber.
Circuit Control System:
1.Controller with LED digital screen display, high precision.
2.With power off memory function, can continue the remaining testing procedure when power on.
3.Temperature control with P.I.D.+S.S.R, synchronized with the control system, thus improve the components stability and life expectancy.
4.Button type setting, digital and direct display
5.With P.I.D automatic calculation function, reduce the artificial setting inconvenience.
6.Light, condensation and spray can be independently and alternate cycle controlled.
UV Aging Stability Test Chamber , Climate Resistant Uv Testing Equipment
