Environmental Test Chamber Walk In Accelerated Aging Climate Room
Environmental Test Chamber Walk In Accelerated Aging Climate Room Price
Walk-in temperature and humidity test chamber used in the defense industry, aerospace industry, automation components, auto parts, electronic parts, plastic, chemical industry, pharmaceutical industry and related products of heat, cold test, for the industry to provide large parts, semi-finished products, finished products of the large temperature and humidity test environment space, suitable for testing the product quantity many, large volume of test equipment.
Parameter:
| Model | THR-volume (low-temperature options : A ~ F) |
| Inner Dimensions(cm) | Customers designated space size and design |
| Temperature Range | Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 80°C (80°C ~150°C is optional) |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
Indication Resolution/Distribution | 0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H. |
Control Accuracy of | ±0.5°C; ±2.5% R.H. |
Temperature Rising/Falling | Temperature rising approx. 0.1~3.0°C/min |
| Cooling System | Water cooled |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Slope for cart , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC 380 V(±10%),50/60HZ ,3 phase 5 Lines |
Characteristics
1.New design temperature humidity climate test chamber walk in test chamber Evaporator no frosting under longtime Low temperature and low humidity running.
2.Automatic control system refrigerant demand save electricity above 30%
3.High heat load tested samples test environment
4.realize 95°C 95%high temperature and high humidity environment.
5.10% 20 °C ultra-low temperature range control ability
6.Multi-language selection: Chinese, English, Russian, Korean, Japanese, German multilingual language switching.
Main Features
1) The content of the custom environmental testing cabinet can be enlarged or narrowed according to user's environmental requirement.
2) Combined board, convenient to assemble and disassemble, simple structure.
3) Custom walk in environmental test chamber using pollution-free freezing medium R404, R23.
4) Capacious and brightly observation window with high light indoor explosion-proof, which allowed users to observe all indoor at any time.
5) Omni-directional safety protection device and power-off memory, ensure the safety of machine itself and users.
6) Winds blow out of the ceiling, which can reduce the influence of the wind indoor to the sample,and can also meet the demand of low wind speed and high degree of uniformity. The machine can connect with the computer, recorder(optional).

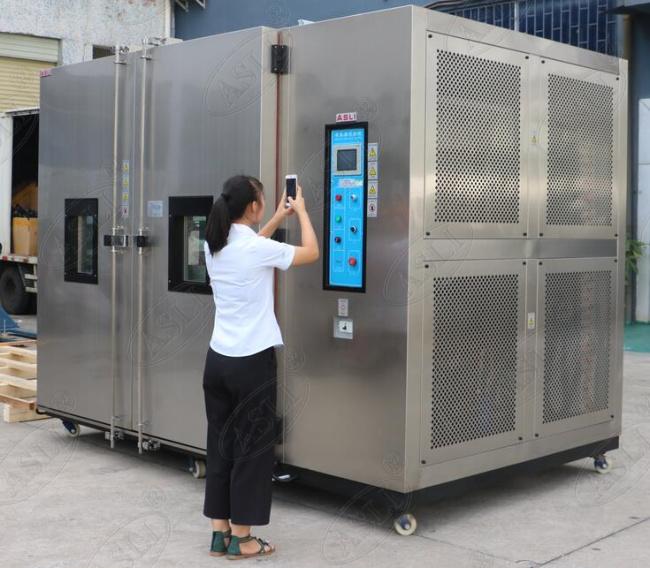

Pictures for reference
