Double Arm / Single Arm Paper Carton Drop Test Machine / Materials Drop Tester
Double Arm/single arm Paper Carton Drop Test Machine/Materials Drop Tester
Double Arm/single arm Paper Carton Drop Test Machine/Materials Drop Tester Test Machine:

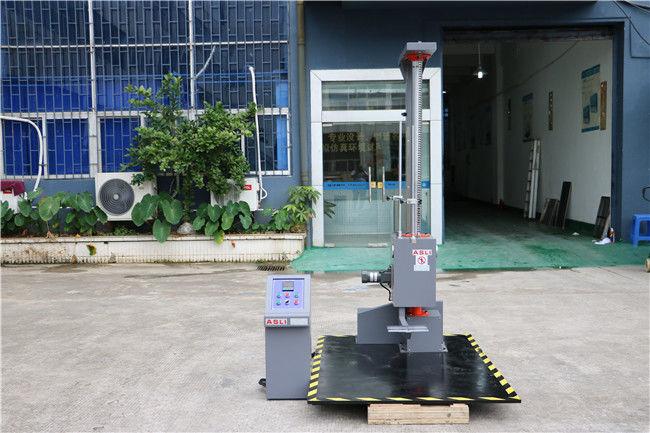

Drop Test Machine of 1.5m Drop Height
Drop Test Machine mainly used for package in the transportation, loading and unloading process to improve the ability to withstand fall, perfect packaging
Drop Test Machine used for evaluating the damage and impact resistance when handling and carrying a package, to do a free fall test for the area, angle and edge of the package.
Double Arm/single arm Paper Carton Drop Test Machine/Materials Drop Tester Test Machine:
|
Model
|
AS-DT-150
|
|
Max. Weight of Test Samples (Kg)
|
100(customized)
|
|
Height of Drop (mm)
|
300~1500
|
|
Max. Dimension of Test Sample WxHxD (mm)
|
1000x800x1000
|
|
Falling Floor Size WxHxD (mm)
|
1700x50x1200
|
|
Drop Method
|
Face, edge, angle
|
|
Test Bench External Dimension WxHxD (mm)
|
1700x2300x1200
|
|
Weight (Kg)
|
700
|
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this Drop Tester simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested.
Purpose:
This machine is designed to test the product packaging fall by the damage, and evaluation of the transportation handling the Wings Drop Testing Machines in China process of impact resistance strength.
Characteristics:
This machine can be a face of packaging, horn, edges as free drop test, equipped with digital display highly display and using decoder the high tracking, which can accurately gives products drop height, and the drop height error less than 2% or 10 mm.

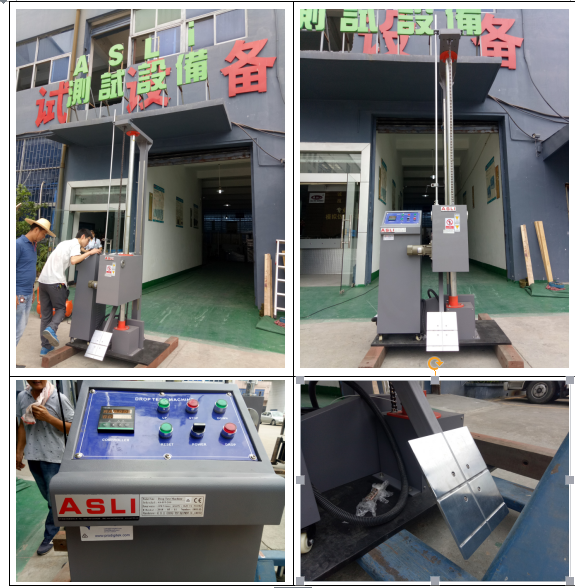

The machine adopts single arm double column frame structure, with electric reset, electric control drop and electric lift device, easy to use; Unique hydraulic buffer device to greatly improve the machine service life, stability and security.
The single arm Settings, can be easily placed products, drop impact Angle face and floor plane Angle error is less than or equal to 5 º.
Design standard
ASTM D5276-98, ISTA 1A (free drop)
ISTA 1A: Relationship of weight and drop height
