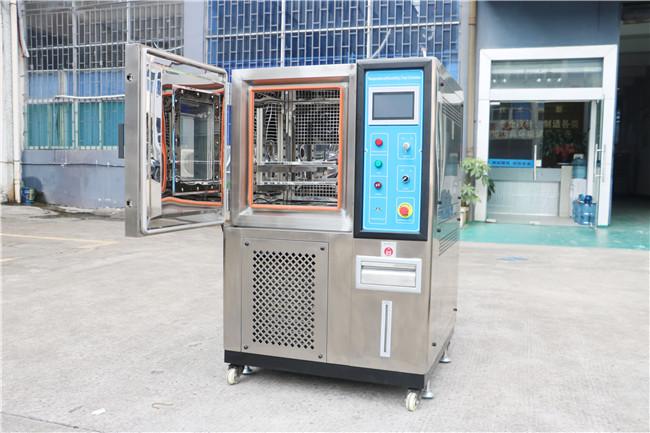

Universal Lab Usage Temperature Humidity Testing Equipment For Civil Engineering
Universal Lab Usage Temperature Humidity Testing Equipment For Civil Engineering
Product Usage
Programmable Temperature Humidity Climatic Test Chamber Price is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Programmable Temperature Humidity Climatic Test Chamber applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on
Technical Parameters:
|
Model
|
TH-150(A~F)
|
TH-225(A~F)
|
TH-408(A~F)
|
|
Internal Dimension WxHxD (mm)
|
500x600x500
|
600x750x500
|
600x850x800
|
|
External Dimension WxHxD (mm)
|
1050x1750x1050
|
1200x1900x1150
|
1200x1950x1350
|
|
Temperature Range
|
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃)
High Temperature 150℃ |
||
|
Humidity Range
|
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier)
|
||
|
Indication relolution/Distribution uniformity of temperature and humidity
|
0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.
|
||
|
Temperature Rising/Falling Velocity
|
Temperature rising approx. 0.1~3.0℃/min ;
temperature falling approx. 0.1~1.0℃/min;
( Falling Min.1.5℃/min is optional)
|
||
|
Compressor
|
French Tecumseh Brand, Germany Bizer Brand
|
||
Application industry (not limited to the following):
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others..
Features
• LED Touch Screen (Korea Temi)
• PID Control of Temperature and Humidity
• Both Temperature and Humidity are Programmable (can have 100pattern, each pattern has 999 segment)
• With Humidity Sensor
• With RS485/232 output to computer
• Window Software
• Remote fault notification(opntional)
• With Viewing Window
• With thermostats (prevent overheat)
• Cable Ports(50mm diameter)
• With Data Storage fuction by USB Flash Memory
• Protection (phase protection, overheat, overcurrent etc)
