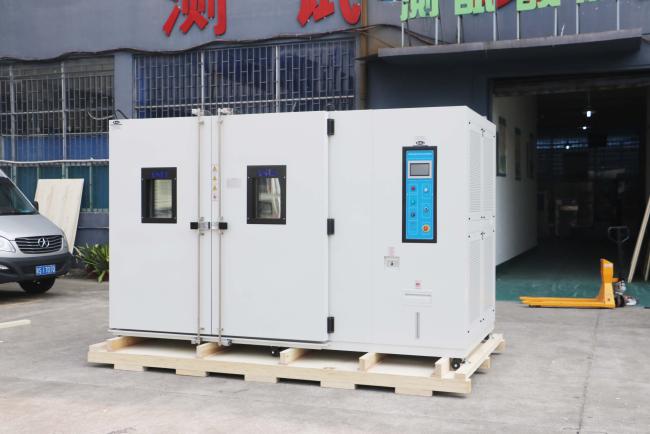

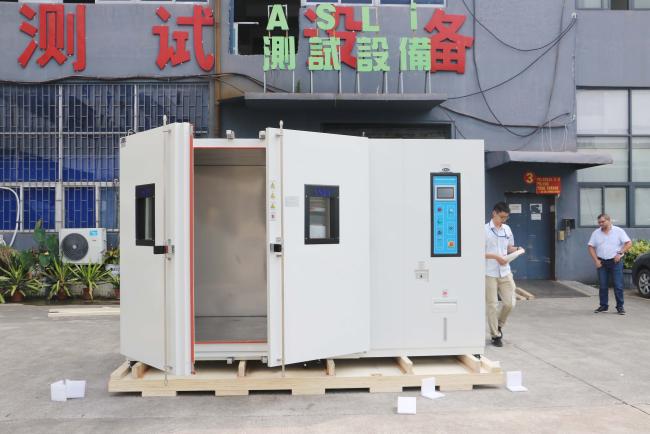

Walk In Temperature Humidity Test Chamber For Cable High And Low Temperature Testing
Walk In Temperature Humidity Test Chamber For Cable High And Low Temperature Testing
| Model | TH-80(A~F) | TH-150(A~F) | TH-225(A~F) | TH-408(A~F) | TH-800(A~F) | TH-1000(A~F) |
| Internal Dimension WxHxD (mm) | 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 |
| External Dimension WxHxD (mm) | 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450 |
| Temperature Range |
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C |
|||||
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H.,is optional , need Dehumidifier) | |||||
|
Distribution Uniformity of temperature and humidity |
±2.0°C; ±3.0% R.H. | |||||
|
Control Accuracy of Temp. and Humi. |
±0.5°C; ±2.5% R.H. | |||||
|
Temperature Humidity Control Chart |
||||||
|
Temperature Rising /Falling Velocity |
Rising approx. 0.1~3.0°C/min; Falling approx. 0.1~1.5°C/min; ( Falling >1.5°C/min is optional) |
|||||
|
Inner and Outer Material |
Interior is SUS 304# stainless steel, exterior is stainless steel or see cold-rolled steel with paint coated. | |||||
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | |||||
| Cooling System | Wind cooledor water cooled; single segment compressor for -40°C, double segment compressor for -70°C | |||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection | |||||
| Optional Accessories | Inner door with operation hole , Recorder, Water Purifier, Dehumidifier | |||||
| Compressor | French Tecumseh Brand, Germany Bizer Brand | |||||
| Power | AC220V 50/60HZ , AC380V 50/60HZ | |||||
| Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 |
Walk In Temperature Humidity Test Chamber For Cable High And Low Temperature Testing Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips,.
2.Rectangular double-paned viewing window for the observation of sample under test,with interior lights.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and
automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A.
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, and of quick or ramp rates control of
temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
Walk In Temperature Humidity Test Chamber For Cable High And Low Temperature Testing Applications:
constant temperature and humidity stability Test Chamber used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for for all types of electronic products,electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical,building materials, medical and aerospace industries.
If you have any quesiton about those Climatic high and low temperature test chamber for aerospace automotive electronics and pharmmable , please feel free to contact with us ,thank you .
