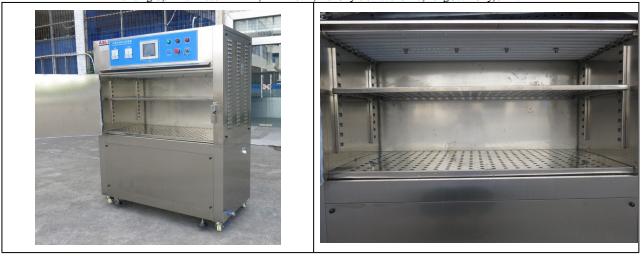

Rubber Programmable Uv Testing Machine With 280~420nm Uv Wavelength
rubber programmable uv testing machine with 340nm uv wavelength
application:
environmental aging test oven Simulated sunlight damage on the material and product test, widely used in the evaluation of material climate resistant.
environmental aging test oven technical parameters:
| Model | UV-230 | |
| Internal Dimension WxHxD (cm) | 115x50x40 | |
| External Dimension WxHxD (cm) | 150x150x55 | |
| Applicable Standard | GB/T16422,GB/T5170.9 | |
| Temperature Range | R.T.+10°C~+70°C | |
| Temperature Fluctuation | ±0.5°C | |
| Humidity Range | ≥95%R.H. | |
| Environmental Temperature for Use | +5°C~+35°C | |
| Test Light Source | UVA,UVB UV light | |
| Wave Length of Test light Source (nm) | 280~400 | |
| Center Distance between Sample and Tube (mm) | 50±2 | |
| Center Distance Between Tubes (mm) | 75±2 | |
| Material of Internal Case | Stainless steel with sanding polish | |
| Material of External Case | Stainless steel with sanding polish or painting coated | |
| Heating and Humidifier | Electric-heat type steam generator ,heating and humidification | |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type | |
| Input | Black panel thermometer.PT-100 Sensor | |
| Standard Configuration | 1 pc Stainless steel shelves | |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection | |
| Power | AC220V , 50HZ | |
Water supply
Automatic water supply, Water purification system, Water saving
Water tank size is 50 Liter.

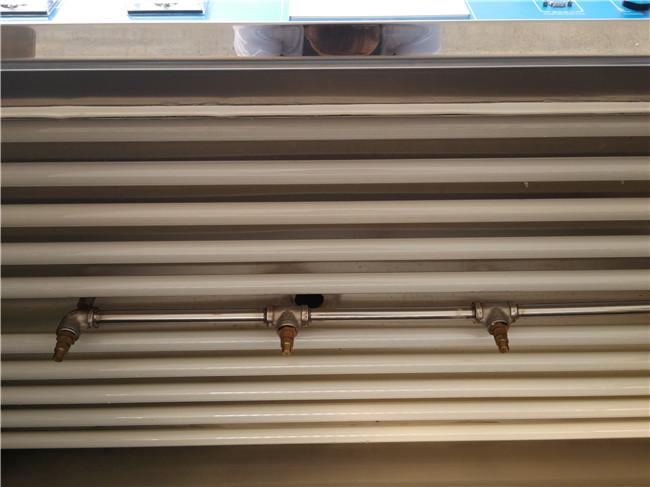

UV Lamp
Chamber equipped with 8 pieces of UV lamp, which is air cooling.
1 of UV Lamp Power is 40W,
Lamp length: 1160mm
UV lamp service life is 1600hours.
Over 1600 hours, must change new lamp.
Safety protection
Humidifier dry-combustion protection
Independent over-temperature protection,
Water shortage protection
Over-current protection
Over-current circuit breaker
Earth leakage protection and so on
Power supply and Wiring
220V, +/-10% ,50 Hz
One-phase Three Lines
