ISTA 2A 3A Standard Half Sine Mechanical Shock Test Machine
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ASLI
Product Description
Half Sine Mechanical Shock Impact Testing Machine Price with Ista 2a 3a Standards
Meet Standard:
1. IEC62133
2. UL1642
3. UN38.3
4. GB31241
Product Application
Half Sine mechanical shock tester price with ista 2a 3a standards is designed for measuring and ensure shock performance of products and packages. It can do normal shock test with half sine wave, square wave, sawtooth wave etc., simulate products under real environment shock conditions, thus improve and perfect products package structure.
Standard Compliance
1.YD/T 2344.1-2011 LiFePO4battery system for telecommunications. Part 1:Integrated battery system
2.GB/T 2423.5Environmental testing for electric and electronic products. Part 2: Test methods. Test Ea and guidance: Shock
3.GB/T 2423.6Environmental testing for electric and electronic products. Part 2: Test methods. Test Eb and guidance: Bump
4.IEC 68-2-29Test Eb and guidance:Bump
5.JJG497-2000Verification Regulation of Bump Testing Machines
1.YD/T 2344.1-2011 LiFePO4battery system for telecommunications. Part 1:Integrated battery system
2.GB/T 2423.5Environmental testing for electric and electronic products. Part 2: Test methods. Test Ea and guidance: Shock
3.GB/T 2423.6Environmental testing for electric and electronic products. Part 2: Test methods. Test Eb and guidance: Bump
4.IEC 68-2-29Test Eb and guidance:Bump
5.JJG497-2000Verification Regulation of Bump Testing Machines
|
SPECIFICATIONS FOR Shock Impact tester
|
|||||||
|
Models
|
SS-5
|
SS-10
|
SS-25
|
SS-50
|
SS-100
|
SS-200
|
|
|
Load Capacity (Kg)
|
5
|
10
|
25
|
50
|
100
|
200
|
|
|
Table Size (mm)
|
120x120
|
200x200
|
350x350
|
450x450
|
650x650
|
750x750
|
|
|
Pulse Acceleration (m/s2)
|
Half Sine Wave
|
150~15000
|
150~15000
|
150~15000
|
150~6000
|
150~6000
|
150~3500
|
|
Trapezoid Wave
|
300~1000
|
300~1000
|
300~1000
|
300~1000
|
300~1000
|
300~1000
|
|
|
Sawtooth Wave
|
150~1000
|
150~1000
|
150~1000
|
150~1000
|
150~1000
|
150~1000
|
|
|
Pulse width
|
Half Sine Wave
|
0.5~18
|
0.6~18
|
0.8~25
|
1.5~30
|
1.5~30
|
2~30
|
|
Trapezoid Wave
|
6~12
|
6~12
|
6~18
|
6~12
|
6~12
|
6~12
|
|
|
Sawtooth Wave
|
6~18
|
6~18
|
6~18
|
6~18
|
6~18
|
6~18
|
|
|
Weight (Kg)
|
600
|
700
|
900
|
2600
|
3300
|
4000
|
|
Main Features
Good durability customized digital mechanical tester for acceleration shock test for home appliances test Features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves

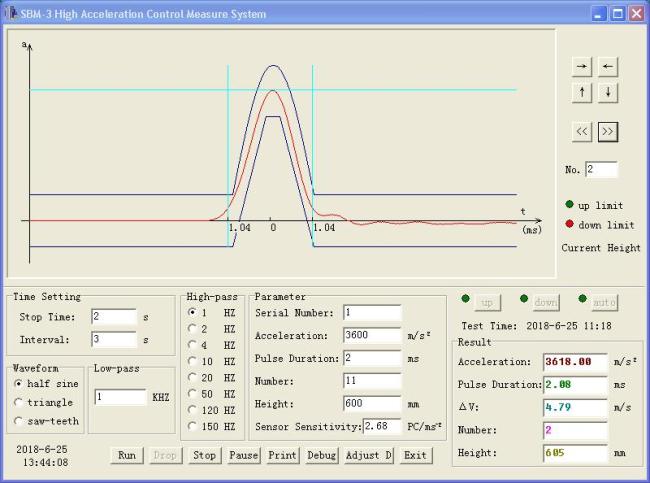

Test Data:
