HSK63A Hydraulic Tool Holders Made Of Special Steel With Long Shank
Price:
Negotiable (Price term: EXW, FOB, CFR, CIF )
MOQ:
1 pcs
Delivery Time:
2~30 Work days
Brand:
HIPPSC
Product Description
HSK63A Hydraulic Tool Holders Alloy Steel Quick Changte With Heat Shrink
Ⅰ. Features
- Run-out ≤ 0.003 μm.
- Vibration dampening increase surface quality.
- Super repeat accuacy.
- 360° and 2 positions for clamping tools, the rigidity is very well.
- Superb moment of force.
- Can be use to drilling, end mil, reaming.
- Better surface quality than other type holders.
Ⅱ. Technical Parametes
|
Product Name |
HSK63A Type Hydro Grip Tool Holder |
|
Spindle Type |
HSK63A |
|
Clamping Range |
6/8/10/12/16/20/25/32mm (diameter) |
|
Precision accuracy |
< 0.003 μm |
|
Processing Type |
Reaming, Endmilling, Drilling, Finishing |
|
Product Material |
Special steel |
|
Hardness |
HRC58~60° |
Ⅲ. Products Show

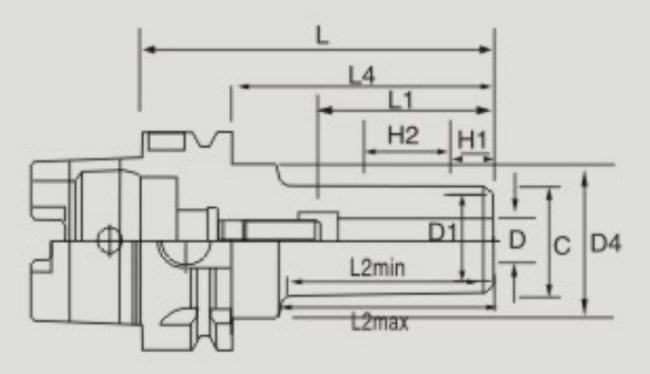

CAD
Products List
| Model Number | D | D1 | C | D4 | L | L2max | L2min | L4 | Collet | Spanner | G |
| HSK63A-HM6-70 | 6 | 25 | 28 | 50 | 70 | 37.5 | 27.5 | 44 | - | T4 | M5X0.8 |
| HSK63A-HM8-70 | 8 | 27 | 30 | 50 | 70 | 37.5 | 27.5 | 44 | - | T4 | M6X1.0 |
| HSK63A-HM10-80 | 10 | 29 | 32 | 50 | 80 | 42.5 | 32.5 | 54 | - | T4 | M8X1.0 |
| HSK63A-HM12-85 | 12 | 31 | 34 | 50 | 85 | 47.5 | 37.5 | 59 | OHM12 | T4 | M8X1.0 |
| HSK63A-HM14-90 | 14 | 33 | 36 | 50 | 85 | 47.5 | 37.5 | 64 | - | T4 | M8X1.0 |
| HSK63A-HM16-90 | 16 | 35 | 38 | 50 | 90 | 52.5 | 42.5 | 64 | - | T4 | M8X1.0 |
| HSK63A-HM18-90 | 18 | 38 | 41 | 50 | 90 | 52.5 | 42.5 | 64 | - | T4 | M8X1.0 |
| HSK63A-HM20-90 | 20 | 40 | 43 | 50 | 90 | 52.5 | 42.5 | 64 | OHM20 | T4 | M10X1.0 |
| HSK63A-HM25-120 | 25 | 53 | 57 | 63 | 120 | 57 | 47 | 94 | - | T5 | M16X1.0 |
| HSK63A-HM32-125 | 32 | 60 | 64 | 75 | 125 | 61 | 51 | 99 | OHM32 | T5 | M16X1.0 |
| HSK63A-HM12-95 | 12 | 31 | 34 | 5 | 95 | 47.5 | 37.5 | 66 | OHM12 | T4 | M8X1.0 |
| HSK63A-HM20-105 | 20 | 40 | 43 | 50 | 105 | 52.5 | 42.5 | 76 | OHM20 | T4 | M10X1.0 |
| HSK63A-HM25-110 | 25 | 53 | 57 | 63 | 110 | 61 | 51 | 81 | - | T5 | M16X1.0 |
| HSK63A-HM32-110 | 32 | 60 | 63 | 75 | 110 | 65 | 55 | 81 | OHM32 | T5 | M16X1.0 |
Ⅳ. Products Overview
- HSK63A Hydraulic Chuck With 20mm Grip Range And 90 Long.
- Heat Shrink-Fit/Shrinking/Heat Expansion Tool Holders.
- Thread screw contacted CNC cutting tools.
- Morse Taper Chucks.
- Torque Tapping Collet and Chuck.
- ER/GER/SK/GER/Hydraulic/Back lock/Collet.
- Torque/Round/Circle Spanner Wrenche/Keys.
- Edge finder/Tool Holder Tightening Fixture/Table.
- CNC Indexable Inserts.
- Quick changte CNC Cutter Head
Ⅴ. Shipment
- By Ship; By Air; By Train/Truck.
- TNT, EMS, DHL, UPS, FedEx.
- Customer Advice Available.
Ⅵ. Packing
Could be customized with customer's requirement.
Ⅶ. Warehouse
- We always forcus on in-time delivery, ensure customer receive the goods as expected.
- Our special department is responsible for inspecting goods before sendind out.
- Standard Gauges to arrange quality control.
- <1% error on delivering Goods and Items of Order.
Ⅷ. Warranty
- High Accuracy Equipments and Technology, Experienced Workers.
- Custom Made Service, Professional suggestions.
- Customer can find any products relating CNC Cutting here.
- Warranty 12 Months, Free Repairing Service.
- Best Service, Considerate and Sincere.
