Olive Bi Color Football Artificial Turf PE Composition FIFA
Artificial Turf Grama Fake Green Carpet Roll Artificial Grass Soccer Field

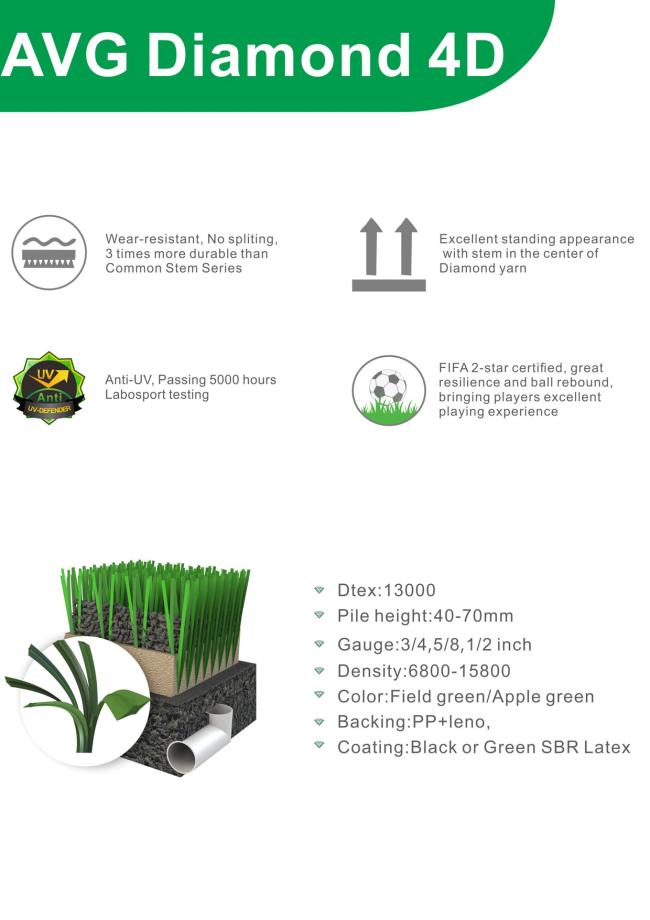

Diamond 4D 130
◆Core selling point: unique diamond + reinforced design, perfect combination of wear resistance and straightness appearance
◆Warranty period: 6-8 years
◆Recommended grass height: 40mm-60mm
◆Base fabric configuration: black and green PP+ leno
| PRODUCT SPECIFICATION | |||
| Product name: | AVG 4D130-40 | Application: | Football |
| Model: | AF50415CS13022 | Roll width: | 4.0m/2.0m |
| Color: | Field&Olive Bi-color | Roll length: | On request |
| Accreditations | FIFA Quality | Warranty: | 8 years under AVG warranty terms |
| YARN CHARACTERISTICS | |||
| Yarn 1 | |||
| Structure: | Monofilament | ||
| Composition: | PE | ||
| Dtex: | 13000 | ||
| Yarn thickness: | 250±10μm | ||
| Yarn width: | 1.0±0.1mm | ||
| UV Effects | |||
| Yarn color fastness: | Grey scale ≥4 | UV stability | ＞5000hrs |
| CARPET CHARACTERISTICS | |||
| TURF | |||
| Pile height: | 40mm±2mm | Gauge: | 5/8inch |
| Number of strands per tuft: | 6 strands | Stitches per 10cm: | 15±1 |
| Stitches per m2 | 10080±100 | Total yarn weight: | 1360g/sqm ±10% |
| BACKING | |||
| Primary backing: | PP+Leno | ||
| Weight: | 171g/sqm | ||
| Latex weight: | 1100g/sqm ±10% | ||
| Total carpet weight: | 2630g/sqm ±100g/sqm | ||
| Carpet | |||
| Carpet tuft withdrawal: | ≥30N | Water permeability of carpet: | ＞180mm/hr |
| INFILL REQUIREMENTS | |||
| Sand | |||
| Particle size range | 0.5-1.0mm | Particle shape: | Round |
| Bulk density | 1.28g/cm3 | Application rate: | 12kg/sqm |
| SBR | |||
| Particle size range: | 1.25-2.0mm | Particle shape: | Irregular |
| Bulk density: | 0.36g/cm3 | Application rate: | 12kg/sqm |
Feature
-
Straight standing
-
Ultra strong ,pass tensile testing
-
Superior sport performance
-
Pass Labosport wear resistance testing
-
With FIFA QUALITY testing report
Advantage of Synthetic Grass
Why the synthetic grass develop fast and well apply to most of the project is because the disadvantage appear on the use of the real grass and the non-negligible advantage of synthetic grass. Plain technology and easy operated manufacturing technique is the main factor, it only need few day or at most half a month to complete the order. And easy maintenance is another factor, it will keep well all the time without any big trash , and have a long service time.
FAQ
--Is AVG a factory or a trade company?
AVG has been working as manufacturer since 1982. And it is the only artificial manufacturer possess two base located in the national economic and technological development zones. AVG is the first list company of artificial grass and sport facility in China.
--Is it possible to get the best price from your company?
Our price is always competitive in the market with quality much higher than the average quality on the market. All the material we use are 100% New PE from Sabic and Sinopec
