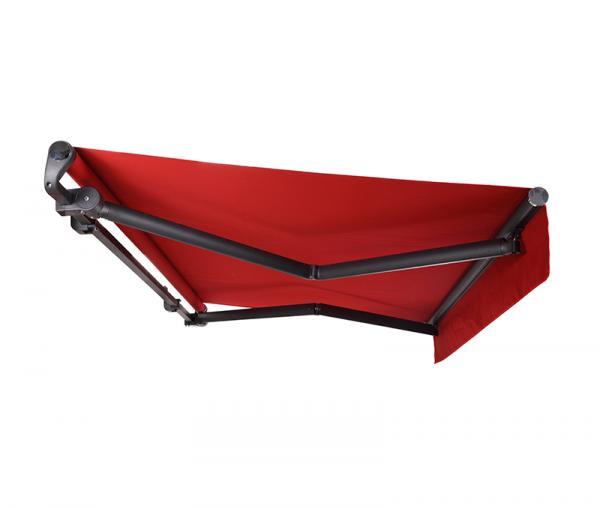

Outdoor Aluminium Semi Cassette Retractable Awnings 6x3m
Specification:

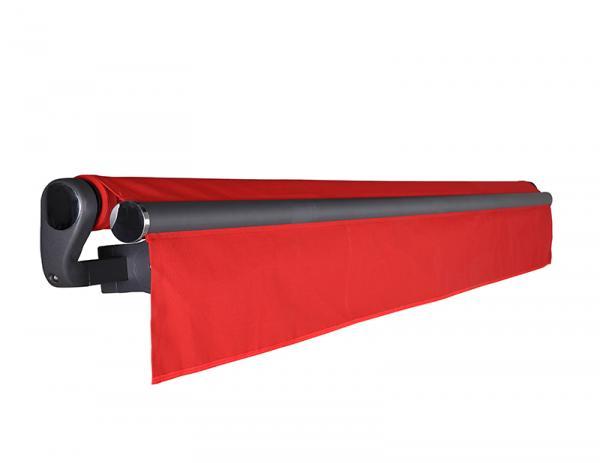

Aluminium Full Cassette Retractable Awning
Roller:70mm Steel
Front Bar:Alu.125x60mm
Arm:50x27/60x27mm
Gear Box:1:11
Adjusted-angle:5°to 75°
Frame:Outdoor Powder Coated
Connector:Alu-Die-Cast
Fabric:Polyester or Acrylic
Packing:Each pc/Carton
Max size:Width 6M,Projection 3M
Arms Available:1.5M,2.0M,2.5M,3M

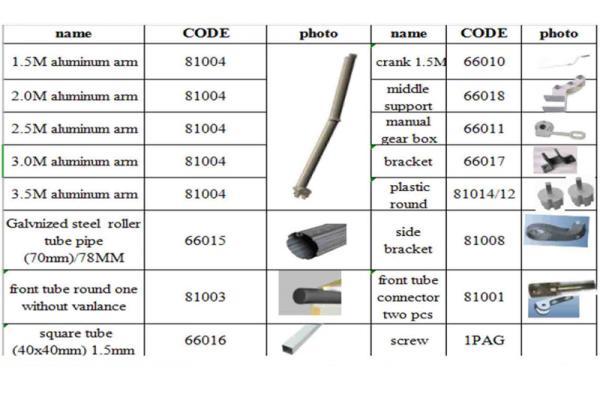

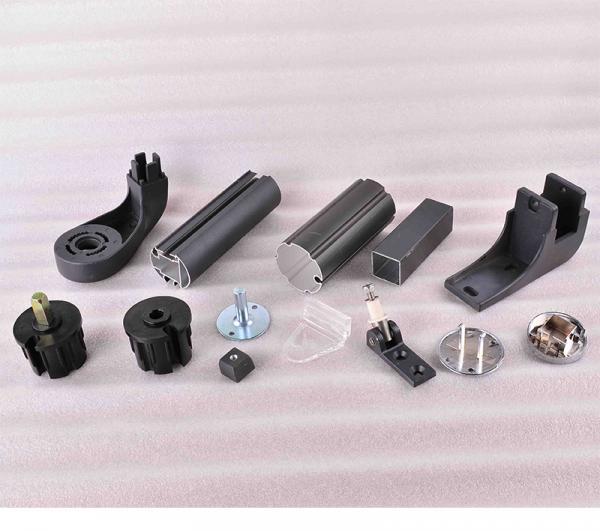

Retractable awning arms assembly
There´s different size for awning arms from 1.5 to 3 for normal arms, and 3.5m,4.0m for stronger arms.

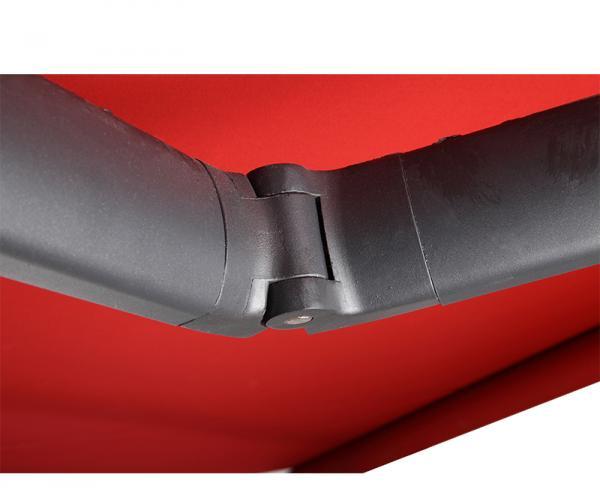

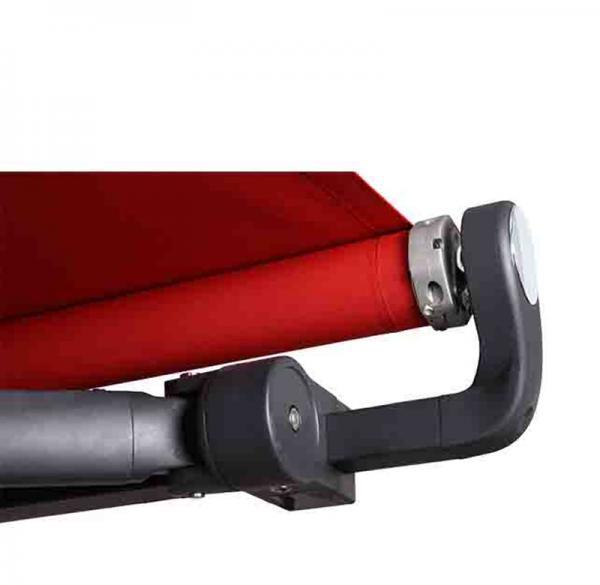

Innovatively designed, awning arm shoulder consists of three components of high strength extruded aluminum that work in conjunction to provide lateral and vertical stability, and are virtually unbreakable. a factory default setting of 25 degrees, and an optional 5 to 75 degree setting after a simple adjustment.

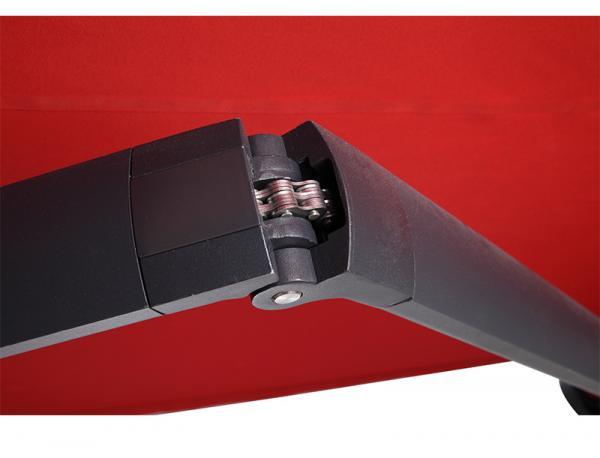

Also have general retractable awning arm with chain arm
Size:1.5M,2.0M,2.5M
Awning Roller Tube
Galvanized dia 70mm,78mm
Aluminum dia 60mm,70mm,80mm
