Fail safe Electric Bolt Lock for wood / Glass Door , Smart Cabinet Lock
Electric Bolt Lock for Frameless Glass Door
We supply integrity equipment to collocate with fully frameless glass door . Build-in Photoelectricity control and low tempreture design .

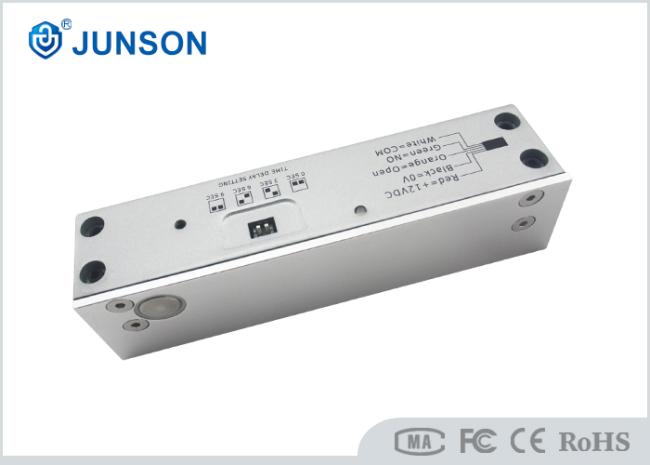

Electric Drop Bolt Door Lock is a fail secure electric bolt suitable for glass door , wooden door , metal door.
Specifications :
|
Face plate dimension |
150Lx43Wx37H(mm) |
|
Bolt diameter |
14mm |
|
Throw out |
12mm |
|
working current |
0.15A |
|
Door sensor |
NO/COM output |
|
Voltage |
12V DC / 24V DC (customized) |
|
Starting current |
1.1A |
|
Available bracket |
JS-701D, JS-101D, JS-100D |
|
Auto relock jumper |
Adjustable 0-9s |
|
Induction Distance |
8mm |
|
Surface Temp |
≦10℃, low temperature |
|
Operating Temp |
-10℃ - 55℃ |
|
Suitable Humidity |
0-90% (non-condensing) |
|
Finishing for lock |
High Aluminum, Carrulous Line |
|
Weight |
1.3kg |
|
Standard Packing |
10pcs |
|
Cartons size |
53L * 30W * 14H (cm) |
Description :
1 . Fail Safe : unlock when power off
2 . Low Temperature , safe & Durable.
3 . Low Power , Environmental Protection.
4 . Special photo-electricity control , three steps current application .
5 . Long Life with 500000 cycles .
6 . MOV Provides Reverse Current Protection.
7 . Superior Strength Aluminum Alloy , Solid Stainless Steel Bolt .
![]()
![]()
Quality Guarantee :
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 2 years
warranty for relative products. On the contrary, JUNSON will charge extra if repair. More information,
please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric deadbolt lock, Electric strike, Electric bolt
lock, Electronic lock.
