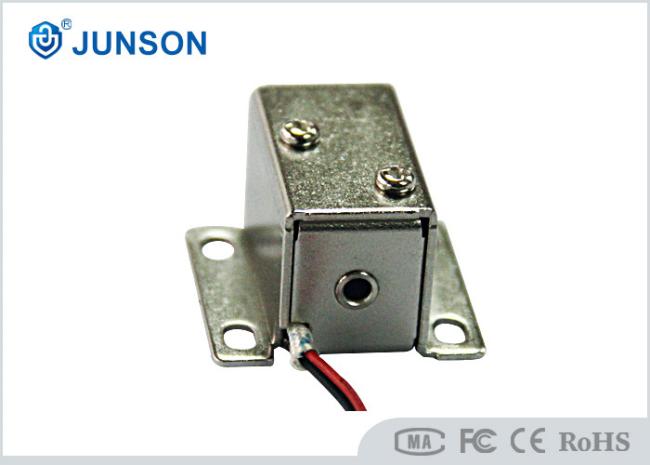

Adjustable Direction 1S 0.4A 4.8W Fail Secure Cabinet Lock
Adjustable Direction Lock Pin Fail Secure Steel housing Cabinet lock
Model: JS-306
Junson's smallest electric cabinet lock was specail design for small locker, auto kitchan cabinet . this lock was selled in Switzerland and Germany.
Specifications:
| Lock Dimension | 27*29*18mm |
| Lockpin length | 5mm |
| Working Type | Fail secure / locked when power off |
| Materials: | Steel housing / fine copper coils |
| Voltage | 12V DC |
| Working Current: | 0.4A |
| Consuming power | 4.8W |
| DC Resistance | 28Ω±10% at 20℃ |
| Duty cycle | Electrify 25% |
| Open time | 1S |
| Continue power on | ≦15S |
| Operation temperature | -5℃ -55℃ |
| Operation Humidity | 5-85℃ |
| Available | All kind of Cabinet |
| Weight: | 0.05kg/pcs |
| Packing: | 100pcs/ carton |
| Carton size: | 32L*22W*16H (cm) |
Main Feature:
| Electronic characteristics | Force | Stroke 0mm ≥300gf (incipient value) |
| Stroke 5mm ≥80gf (incipient value) | ||
| Residual magnetism | after DC12V applied shall be return at weight of Iron rod 5gf (perpendicular direction) | |
| Insulation resistance | Between coil and frame DC500V normal temperature /humidity,100MΩ | |
| Withstand voltage | Between coil and frame AC500V(50/60Hz)1Min or AC1200V(50/60Hz)1Sec(breakdown current 10mA | |
| Temperature rise | After DC12V applied by resistance method 65 deg Max | |
| Life | Repetitious operation for 0.5 million cycle (continuous at DC12V) | |
| Lead-wire strength | adding 0.5kgf (random direction) not chip off |
Function
1. Fail-secure type:the bolt is locked when the current is off, Low power less heat,longer life, Stable Performance.
2. suit for a variety of cabinet structure, such as file cabinets, supermarkets storage boxes , store counters and so on
3. Professional Design,Simple Installation.
Lock deminsion drawing:
Product Details
JS-306 is suitable for all kinds of boxes, cabinets and other occasions where it should be open frequently. Combine with safe box. cabinet storage etc in demand shopping malls. Instant electrified,safe,durable,energy saving, easy to install.
