DESCRIPTION

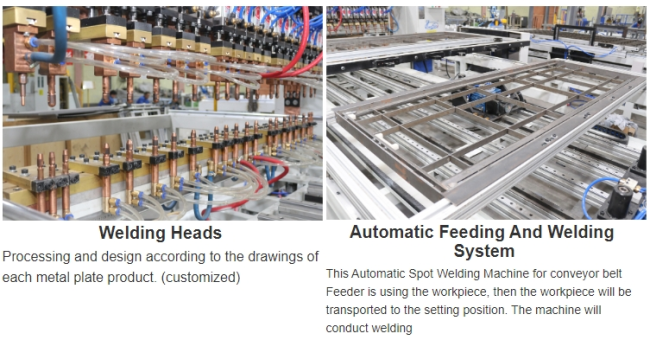

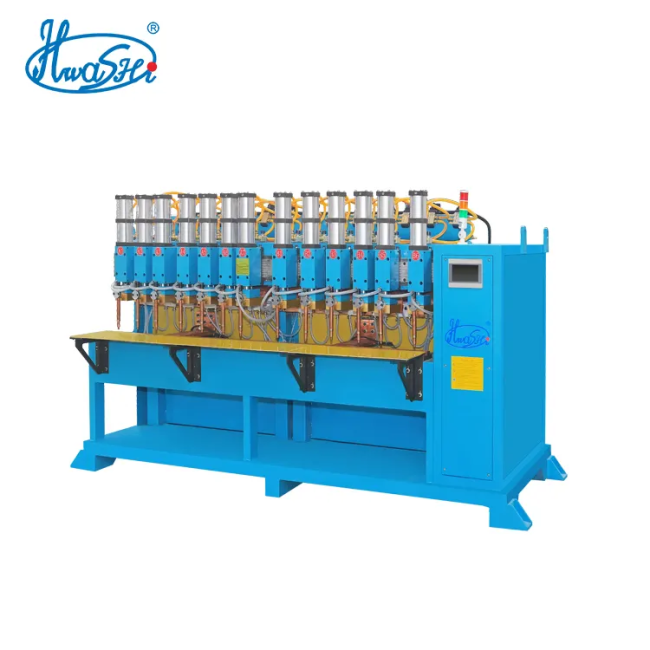

This Door Panel Multi Head Spot Welding Machine adopts multiple welding heads with automatic welding. You can choose multi head welding at the same time or each head welding in turns. It is suitable for door panel or sheet metal multi spot welding.

The effective welding width is 1000mm to 2000mm while the effective welding length is 300mm (customized). The material thickness is ranging from 0.4mm to 1.5mm.

Working Process
* Manually put the workpiece onto the table;
* Press the start button, then the machine will conduct welding automatically for one line of spots;
* After welding one line, then manually move the product to another line. Then press the start button again.
* Cycle working

Advantages
* Refined welding
* No need for special equipment
* Multi head welding at the same time
* Maximally easy working area access
* Production flexibility
* Reduced labor costs

The welding machine is designed to weld stffeners to Metallic Furniture Cabinet automatically. CNC control of the tooling for model change. Manual loading and automatic welding.
