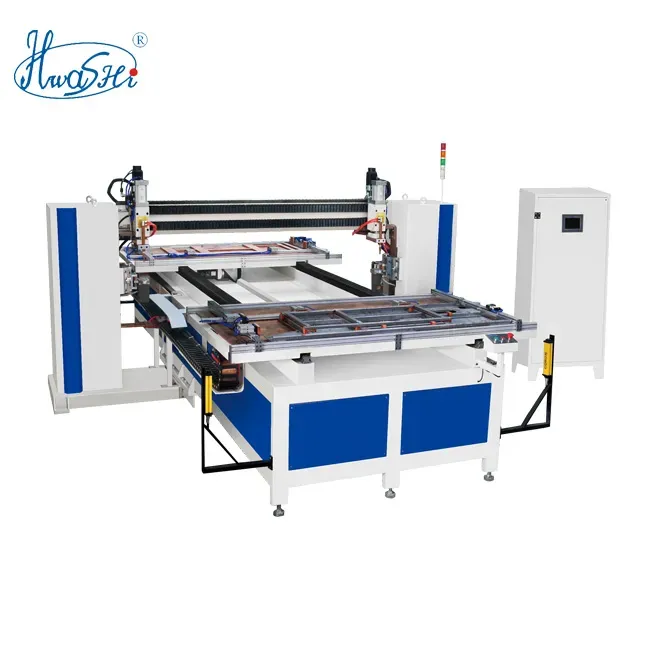

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder
Price:
Negotiation
MOQ:
1 set
Delivery Time:
20 - 30 working days after received your payment
Brand:
HWASHI
Product Description
Hwashi Security Stainless Sheet Door Plate Multi-point Automatic Mobile Type Spot Welding Machine,Sheet metal welder
CNC Double Head Automatic Welding Machine for Galvanized Sheet Door Panel, we suggest to choose the MF DC power due to the long distance welding. Lower electrode adopts full flat locating method, moving along with the Y-axis direction; The left and right side of platform has been equipped with one electrode respectively, and it will move along with the X-axis; Each welding head is equipped with one set of welding power source arranged in a straight line. After loading the work piece, start welding. The platform moves along with the Y-axis direction to the welding position as per preset position program. Then the welding heads move from both sides toward middle and weld this row. After welding this row, moves in Y-axis direction to another row. In the meantime, both sides of the platform work circularly until complete the welding.
CNC Double Head Automatic Welding Machine for Galvanized Sheet Door Panel can complete loading and fixing the work piece at one time; It can automatically move and weld as per preset location; Electrodes can automatically enter grinding system to repair and maintain the electrodes; It can be better to guarantee stable welding points, improve products quality and production efficiency and reduce production cost. It solves the unstable quality and low production efficiency defect caused by manual job; The maximum flat table size is 1500 x1500mm.(customized)
Automatic Moving Table
Be able to choose the two welding tables located from the same side or different side. We may design the machine according to your product drawings.
|
S.N
|
Items
|
WL-AT-MF 15
|
|
1
|
Input Voltage
|
380v,3-Phase
|
|
2
|
Input Power
|
160KVAx2
|
|
3
|
Max.Welding Current
|
32000 Ax2
|
|
4
|
Welding Specification
|
32 Kinds
|
|
5
|
Different Welding Current
|
5000
|
|
6
|
Effective Size Of Welding Platform
|
1500mmx1500mm
|
|
7
|
X Axis Effective Width
|
750 mm
|
|
8
|
Y Axis Effective Length
|
1500 mm
|
|
9
|
X Axis Servo Motor
|
2 Sets
|
|
10
|
Y Axis Servo Motor
|
2 Sets
|
|
11
|
Feeder Moving Speed
|
800 mm/sec
|
|
12
|
Servo Motor Power
|
450 W
|
|
13
|
Welding Cylinder
|
2 NO.(80x50mm)
|
|
14
|
Upper Welding Electrode
|
2 Sets
|
|
15
|
Lower Electrode
|
full flat table
|
