Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack
Price:
Negotiation
MOQ:
1 set
Delivery Time:
20 - 30 working days after received your payment
Brand:
HWASHI
Product Description

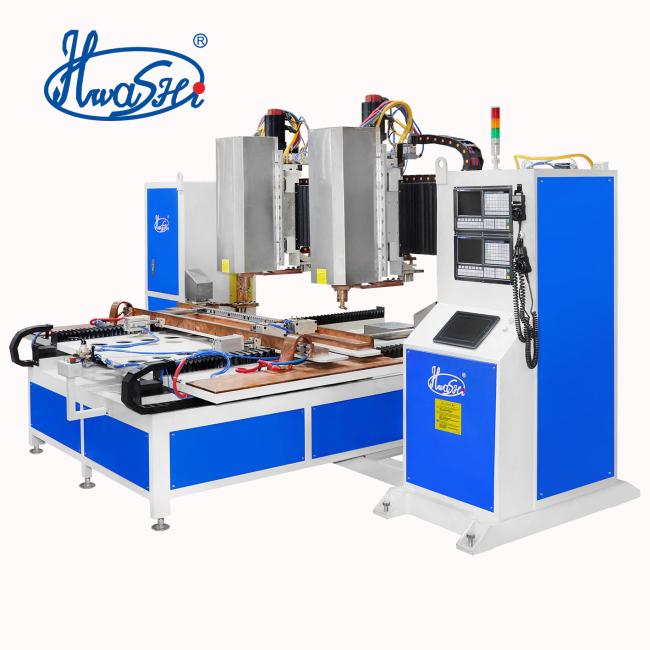

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack
Product Description
This machine is customized according to your welding requirement and your product specifications. The machine adopts two sets of welding mechanism through the CNC servo system, including X direction mobile welding, Y direction of the table movement, through the XY direction to achieve welding of different positions. Welding mechanism can also Z direction lifting and A direction rotation, with CNC system to control seven asix to achieve the movement of different positions for the welding mechanism.
Features
The equipment welding power supply adopts medium frequency inverter power supply. The equipment can realize the automatic welding production of the workpiece, automatically move and weld according to the position set by the program, and the operator only needs to manually load and unload the product. The equipment improves the product quality and production efficiency, reduces the production cost, solves the defects such as the unstable quality of manual work and low production efficiency, and the production efficiency and automation degree are high.
Applications
Mainly used for welding low-carbon steel, low-alloy steel, stainless steel, coated steel, plate and round steel that cannot be or inconveniently welded by general fixed welders. It is widely used in industries such as automobiles, civil sheet metal, anti-theft doors, cabinets, and household appliances.
|
S.N
|
Items
|
WL-AT-MF 15
|
|
1
|
Input Voltage
|
380v,3-Phase
|
|
2
|
Input Power
|
160KVAx2
|
|
3
|
Max.Welding Current
|
32000 Ax2
|
|
4
|
Welding Specification
|
32 Kinds
|
|
5
|
Different Welding Current
|
5000
|
|
6
|
Effective Size Of Welding Platform
|
1500mmx1500mm
|
|
7
|
X Axis Effective Width
|
750 mm
|
|
8
|
Y Axis Effective Length
|
1500 mm
|
|
9
|
X Axis Servo Motor
|
2 Sets
|
|
10
|
Y Axis Servo Motor
|
2 Sets
|
|
11
|
Feeder Moving Speed
|
800 mm/sec
|
|
12
|
Servo Motor Power
|
450 W
|
|
13
|
Welding Cylinder
|
2 NO.(80x50mm)
|
|
14
|
Upper Welding Electrode
|
2 Sets
|
|
15
|
Lower Electrode
|
full flat table
|
