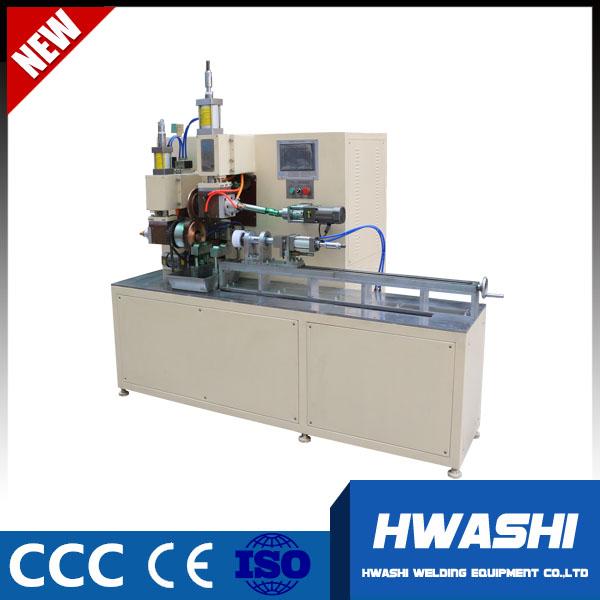

Industries Stainless Steel Water Pump Tank Roll Welder Seam Welding Machine

DESCRIPTION

1. Use the roller electrode to replace the cylindrical electrode of spot welding
2. It will generate weld nuggets which will overlap with each other so as to achieve welding effect.
3. AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available.
4. Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiatior, airplane and fuel tank, rocket and missile. In general, the welding thickness is within 3mm of single sheet.
5. The welding seam of roll welding is composed of welding spots.
6. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.
7. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.

SPECIFICATION

APPLICATION

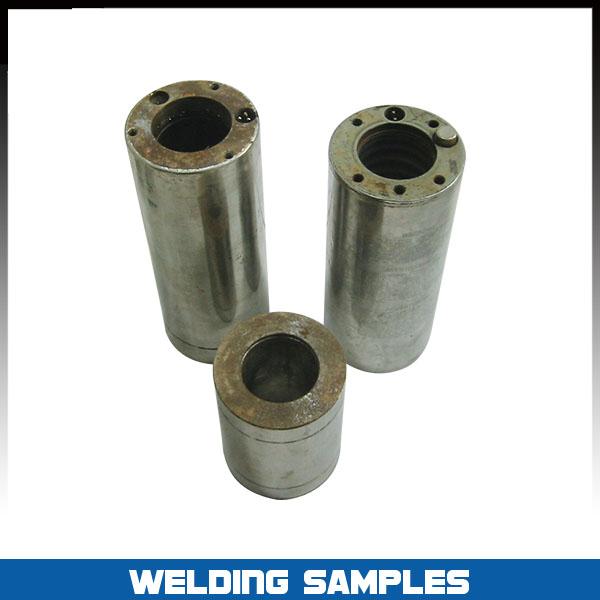

Welding of water pump liner.

MATERIAL CONFIGURATION

1. Adopt SEMIKON from West Germany, IXYS or IR Silicon controlled from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.
2. Adopt Motorola integrated circuits from United States. Quick response. Stable performance.
3. Adopt pneumatic parts from Japan or Taiwan with reliable performance.
4. All the devices are from imported famous brands with ideal service life and performance.

COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
