Hand Held Mini Spot Welding Machine
HWASHI Hand Held Portable Spot Welding Machine for Auto Parts
DESCRIPTION
1. Electrode pressure adjustment screw
2. Right / left handgrip.
3. Position for eyebolt. ( Eyebolt not supplied.)
4. Moving welding arm.
5. Fixed welding arm.
6. Power supply cable.
7. Rating plate.
8. Microswitch.
9. Welding time adjustment. (H-3000)
10. Control panel.
11. Welding lever

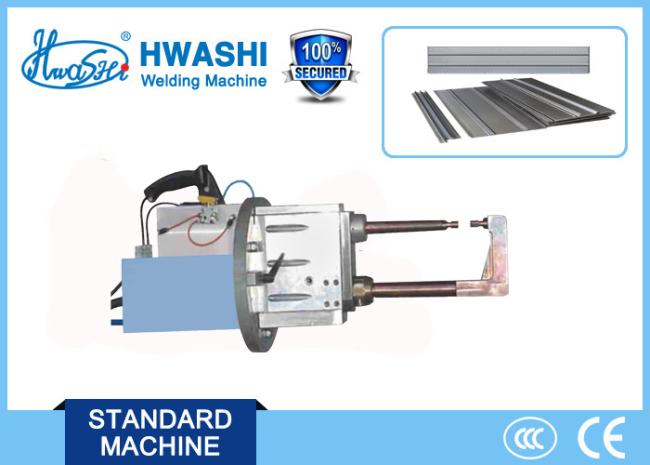

This hanging spot welding machine,also known as integrative spot welding machine, it integrate the main transformer and the welding clamp together,it has aluminum alloy body,with characteristics of small volume and large output,high efficiency and energy saving,light flexible,etc. While the machine operation can be done horizontally and vertically rotate 360 degrees. The major advantages of integrative spot welding machine is saving a lot of energy and one-time investment costs ,as well as the consumption cost of wearing parts,it has a flexible light weight body ,stable and reliable.
SPECIFICATION
|
ITEM / MODEL |
WL-25C |
WL-25C |
WL-35C |
WL-35C |
WL-40C |
WL-25C |
|
Load Occupation Rate 50%(KVA) |
25 |
25 |
35 |
35 |
40 |
40 |
|
Secondary Voltage(V) |
2.75 |
2.75 |
4.3 |
4.3 |
4.25 |
4.52 |
|
20m of Cable Sectional Area |
8 |
8 |
10 |
10 |
12 |
12 |
|
Fusion Current(A) |
35 |
35 |
50 |
50 |
60 |
60 |
|
Arm Space(mm) |
100-158 |
120- |
110-330 |
120- |
110-605 |
120- |
|
Minimum Arm length(mm) |
160 |
160 |
160 |
160 |
160 |
160 |
|
Electrode Tip Welding Stroke(mm) |
15-25 |
15-25 |
15-25 |
15-20 |
15-35 |
15-20 |
|
Maximum Cylinder Stroke(mm) |
40 |
70 |
40 |
70 |
50 |
70 |
|
Maximum Arm Length(mm) |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 |
APPLICATION
Production industries like automobile, metal plate, household appliances, etc. and repair industry like vehicle maintenance and repair; Match up with manipulator to achieve the needs of automatic production line.
COMPATITIVE ADVANTAGE
1. Prompt Response to Customers: Your satisfaction is the goal we pursue.
HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.
2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.
3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.
4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5. Quick Delivery: Our company provides just-in-time delivery.
