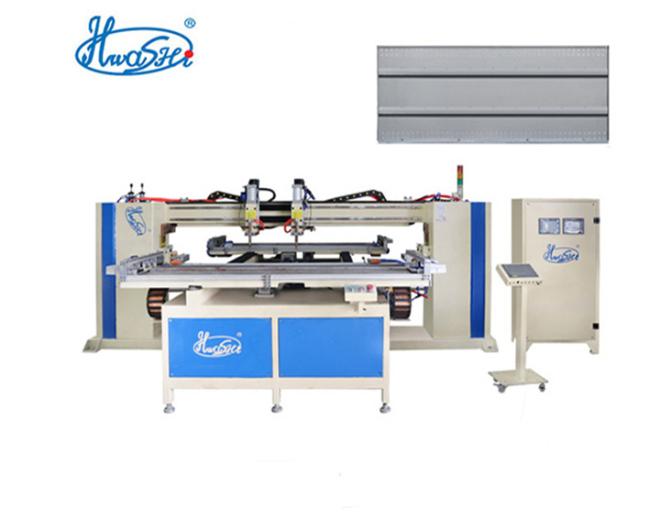

Door Plate Crank Arm Spot Welding Machine Single Head Stainless Steel Welding Material
Description
Crank-arm mobile flat table spot welder is designed with multiple mobile arms according to the principle of mechanical arm, which can automatically or manually move in order to ensure the precise preset position of welding spot.
AC pulse, three-phase secondary rectifying or medium frequency inverter power source are optional to be the welding power source.
| S.N | Items | WL-MF-75K |
| 1 | Input voltage | 380V,3 phases |
| 2 | Input current | 80A |
| 3 | Output voltage | 12V |
| 4 | Max.Welding Current | 26000A |
| 5 | Welding Specification | 18 kinds |
| 6 | Different Welding Current | 6 kinds |
| 7 | Effective size of welding platform | 2000mmx800mm |
| 8 | Max.range of Crank moving | 1200mm |
| 9 | Max.angle of Crank moving | 180° |
| 10 | Adjusting rang of platform height | 0-200mm |
Features
1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.
2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.
3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement. Quick response, high precision of control. Automatic device adopts the X, Y axis of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.
4. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.

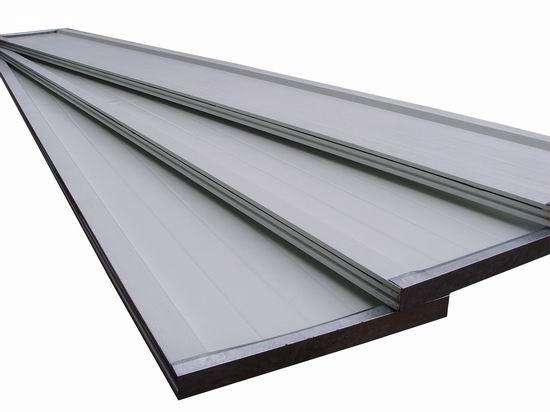

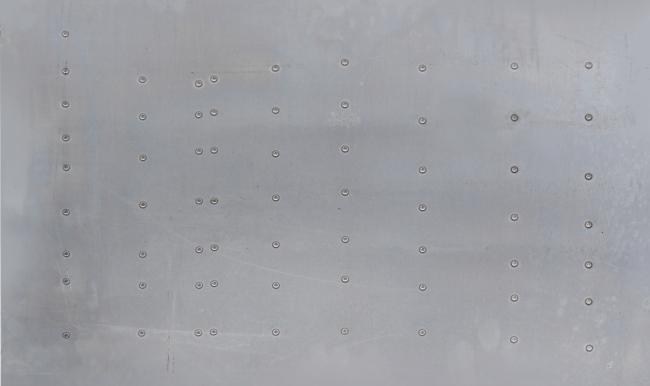

Welding Samples
Material Configuration
2. Adopt SEMIKON, IXYS from West Germany or Silicon controlled of IR from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.
3. Adopt Motorola integrated circuits from United States. Quick reaction. Stable performance.
4. Adopt pneumatic parts from Japan or Taiwan. Reliable performance.
5. All the devices are from imported famous brands. Ideal service life and performance.
The main products of our company include capacitor discharge spot welder, pneumatic AC pulse spot welder, three-phase secondary rectifying spot welder, medium frequency inverter spot welder, precision micro spot welder and high degree of automatic welding machine.
