Automatic Coil Steel Bundy Pipe Straightening Machine Aluminum Copper Tube
Price:
$12000
MOQ:
1 set
Delivery Time:
7-30 working days after received your payment
Brand:
HWASHI
Product Description
Automatic coil steel bundy aluminum copper tube pipe straightening and cutting machine
Description
1) Motor driving for loading material. Frequency speed control; rotary encoder measuring; Equipped with functions like output counting, tube winding, feeding slip protection.
2) PLC control. Human-machine interface operation to set parameters.
3) Use no scraps cutting method for cutting the tube coil.
4) The fixture, straightening wheels, feeding wheels are made of Cr12 steel which passed heat treatment and fine polishing.
5) Spare parts: cutters- 2sets; 6) Decoiler:Maximum load: 150kg Maximum diameter of coil: 1000mm
APPLICATION
Suitable for tube straightening and cutting different size of wire.

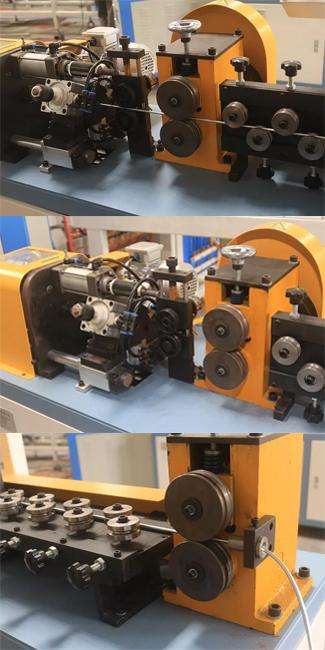

Details of the machine
SPECIFICATION
| No. | Item | Parameter |
| 1 | Wire Diameter | Ø2mm-5mm/ Ø5mm-8mm |
| 2 | Oil cylinder | Ø63mmX25mm |
| 3 | Oil pump | 3P |
| 4 | Coder | E40S6-1000 Absolute type |
| 5 | Oil press power | 2.2KW/3HP |
| 6 | Oil case Volume | 80L |
| 7 | Oil pump flow | 40L/min |
| 8 | Max wire feeding speed | 25m/min adjustable |
| 9 | Hydraulic Motor Specification | 90X90 flange |
| 10 | Uncoiler Max load capacity | 1500Kg(customized) |
| 11 | Round Plate Diameter of Uncoiler | φ1600mm(customized) |
| 12 | Main Machine’s Service Voltage | Three Phase 380V(±15V) |
| 13 | Control Method | PLC |
| 14 | Preset Quantity Function | yes |
| 15 | Dimension | 1300x900mm |
