15 Head Rack Spot Welding Machine 100KVA Wire Mesh Welder Hwashi
15 Head Rack Spot Welding Machine 100KVA Wire Mesh Welder Hwashi

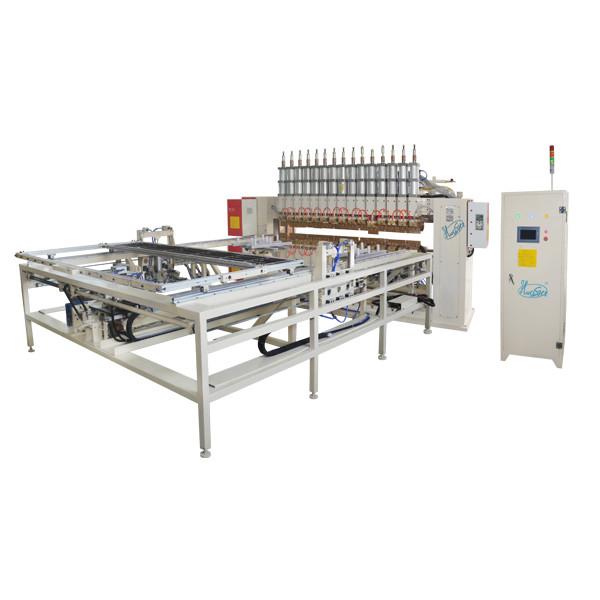

Hwashi 15 head Rack Spot Welding Machine
SPECIFICATION
|
Model |
Input Voltage |
Input Power |
Input Current |
Row Welding Width |
Adjustable Stroke |
|
V |
KVA |
A |
mm |
mm |
|
|
WL—100K |
380 |
100 |
30000 |
200 |
50 |
|
WL—125K |
380 |
125 |
35000 |
200 |
50 |
|
WL—150K |
380 |
150 |
40000 |
200 |
50 |
DESCRIPTION
Wire mesh special row welding machine, utilizes the features of smooth surface, the unified thickness of wire diameter and large welding area of wire rod, and through using special fixture, to achieve highly efficiency, fast speed, and little deformation of welding. Except for square and rectangle, it can be used to weld triangle, circle and even other kinds of odd flat net.
Notes: The welding feature of row welding is similar to gantry welding, but they are different in the size of the welding samples. The diameter of the sample of gantry welding is larger than that of row welding.
