EC/ MED Certificated 15 Min Air Compressed Emergency Escape Breathing Device - EEBD

Descripation:

Emergency Escape Breathing Device is a self-contained compressed air breathing apparatus, mainly used for emergency escape from the environment that can not breathe.

Emergency Escape Breathing Device (EEBD) is a self-protective breathing apparatus for people in distress to escape and self-protect. Only operated properly can it help users escape from accident spot safely within effective use of time.

Emergency escape breathing device (EEBD) is used for escaping from a compartment that has a hazardous atmosphere to provide personal breathing protection. Not to be used for fighting fire, entering oxygen deficient voids or tanks, or worn by fire fighters.

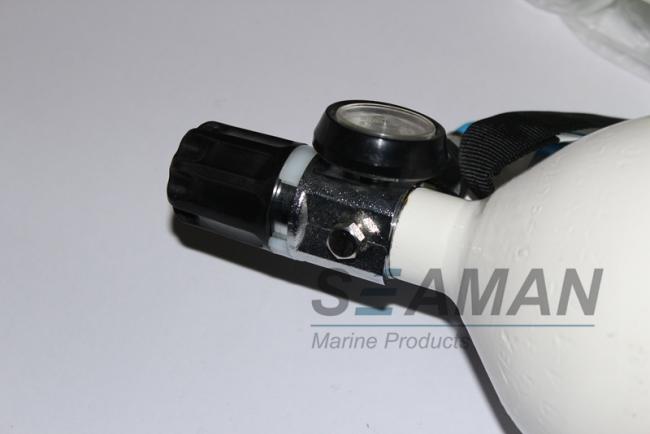

There is pressure gauge on the cylinder to indicate the cylinder pressure. The cylinder pressure of EEBD is not indicated by a pressure gauge during storing. the hood is a flame resistant head cover which completely covers the head, neck and may cover portion of the shoulders, where there is a clear window.

The Emergency escape breathing device is easy to use. You just need to open the cylinder valve and put the hood on head when use it.

Complete sets include:
1 Escape device one set

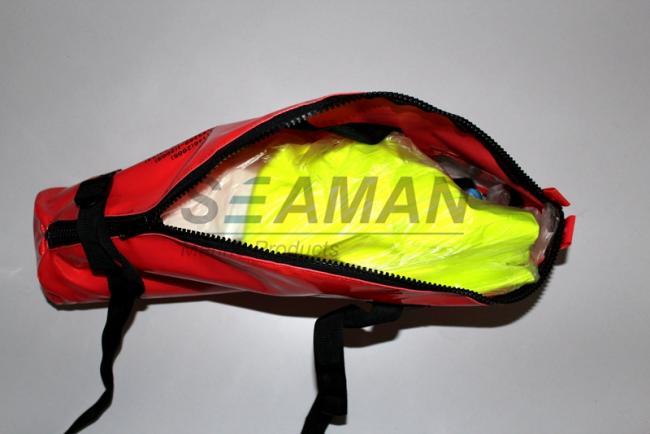

2 Device bag one piece
3 Device packing carton one piece
4 Files with the device one set

Applied environments:

Environment of Smoke, hypoxia, as well as environment polluted by toxic gas, smoke, steam, etc.
Environment of temperature of -30℃～60℃, relative humidity of 0～100%,atmospheric pressure
of 0.7bar～1.25bar.

Implementation standards
This product, after tested, meets the ISO 23269-1:2008 standards, the EU Marine Equipment Directive
(MED)96/98 EC requirements, the 2000 amendments to the 1974 SOLAS Convention Chapter 11-2 / 13.3.4
and the International Fire Safety Systems (FSS) rules Chapter 3 2.2.

The main technical parameters

Use Instructions:

1. Check the pressure gauge, observe the cylinder capacity and tear the seal.

2. Put on the satchel, pull out launch belt to open it.

3.Take out the face mask and wear it from the head down, and be noticed that transparent window is in the front and the shawl covers the shoulders.

4.Escape from the accident spot quickly.

Picture:
