6L / 6.8L Spare Cylinder For Air Breathing Apparatus
6L / 6.8L Spare Cylinder For Air Breathing Apparatus Steel / Carbon Fiber Composite
Descripation:
Carbon fiber gas cylinder for Breathing apparatus Made of high quality carbon fiber and glass fiber.
The seamless aluminum liner is made of high quality aluminum (aluminum 6061) and alloy materials.
The thickness of the liner wall is uniform, the shape of shoulder and base is produced with high precision and consistency.
The carbon fiber cylinder have a good feather of less weight (50% less than normal steel cylinder), high gas storage, high pressure resisitence.
it is special suit for used in fire-fighting, Mining, chemistry, oil, gas industry.
Features and Benefits
- Lighter weight and higher strength than the same size steel cylinder, durable use.
- High safety performance, After the test of leak before break mode, no debris flying out.
- 6061 Aluminum alloyliner tank form by drawing the whole board only once, effective anti-corrosion
- Be able to withstand pressure cycle fatigue test over 10000 times, long service life.
Applied environments:
Environment of Smoke, hypoxia, as well as environment polluted by toxic gas, smoke, steam, etc.
Environment of temperature of -30℃～60℃, relative humidity of 0～100%,atmospheric pressure
of 0.7bar～1.25bar.
Main technical parameter:
|
Volume(L) |
1.5 |
2.4 |
3 |
6.8 |
9 |
|
Working pressure(MPa) |
20 |
30 |
|||
|
Bursting pressure(MPa) |
68 |
102 |
|||
|
Use temperature(°C) |
-40~60 |
||||
|
Working life(year) |
15 |
||||
|
Storage capacity(L) |
300 |
480 |
900 |
2040 |
2700 |
|
Empty cylinder weight(kg) |
1.1 |
1.54 |
1.9 |
3.6 |
5.0 |

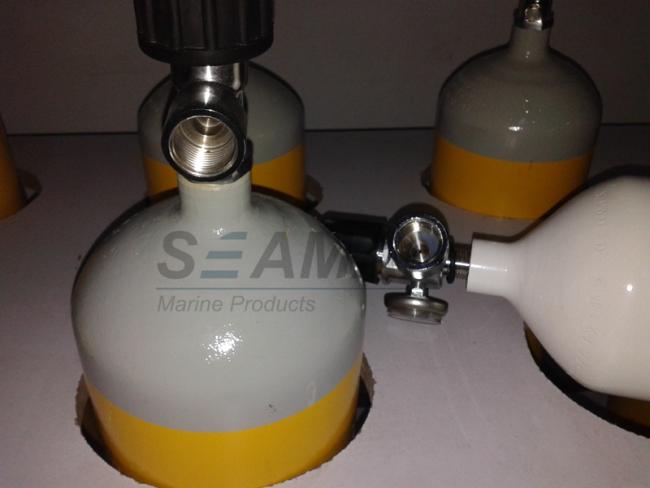

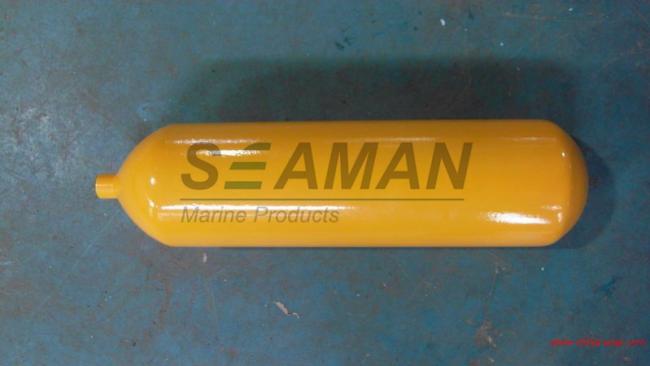

Picture:
Application
SCBA (Self contained Breathing Apparatus)
Closed Circuit Breathing Apparatus
