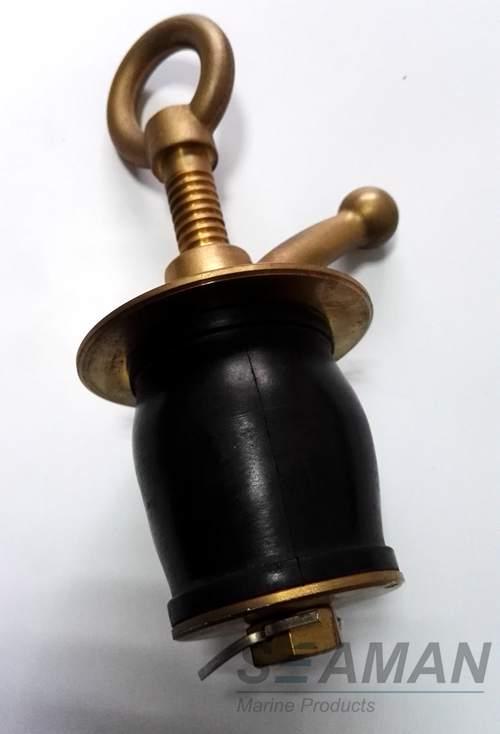

Marine Scupper Plugs IMPA 232481 3mm Brass 65 X 85mm

Code: 40003

Overview:

A Scupper Plug is a device specifically designed to seal a Scupper Hole — the through-hull opening in a vessel’s bulwark, toe rail, or cockpit side that allows water on deck (from rain, waves, or wash-down) to drain overboard.

Material:

High quality brass castings, Expanding sleeves are made out of NBR oil resistant rubber

Feature:

1. Sealing the scupper holes for spilled oil or polluted liquids.
2. Easy to use, insert plug in the drain hole and tighten the handle until a slight resistance is felt, the rubber plug will be place.
3. Rubber parts are made of oil resistant rubber(CR).
4. Eight types are available according to the pipe size.
5. Specify the applicable drain pipe diameter when ordering, referring to the plug application list.

Size chart:

Applications:

Components are precision machined to form a leak proof seal when expanded against a pipe

Wide Range covers all types and pipe schedules

1. Prevent Water Ingress: When inserted from theoutside, it stops seawater from flooding back onto the deck through the scupper, especially when heeled (sailing), backing down, or in following seas.

2. Contain Fluids on Deck: When needed, it can temporarily contain minor spills or wash water on deck for cleaning.

3. Winterization/Dry Storage: To keep rain and debris out of interior scupper hoses during storage.

How to use
Insert plug in the drain hole and tighten the handle until a slight resistance is felt, the rubber plug will be expanded and held firmly in place.
Eight types are available according to the pipe sizes. Pls check the below table for details
