High Speed Copper Cable Buncher Machine for Wire Bunching Double Twisting
Price:
Negotiable
MOQ:
1set
Delivery Time:
30days
Brand:
Fuchuan
Product Description
Product Description

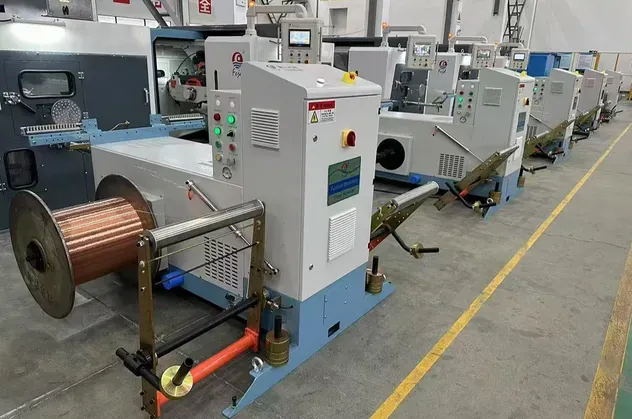

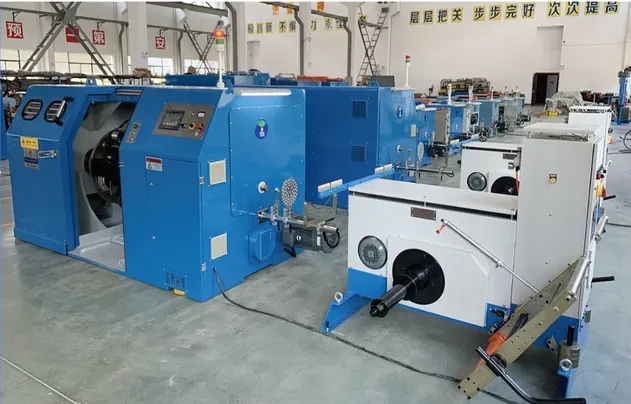

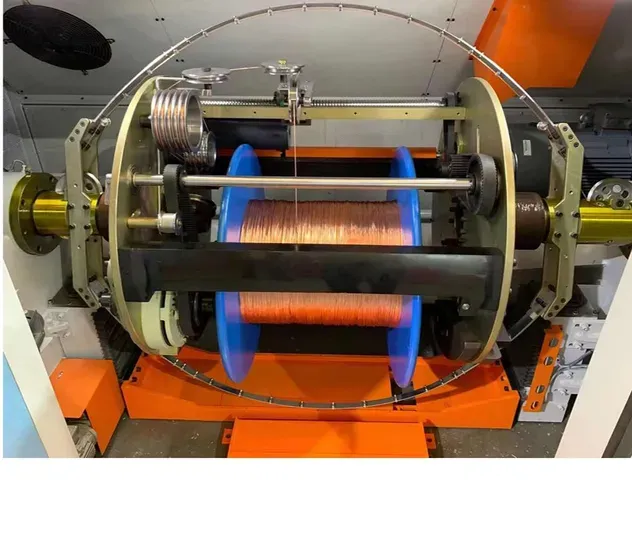

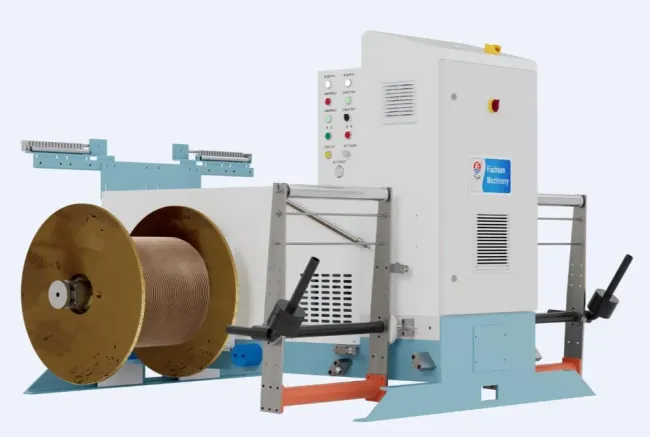

Normal Wire High Speed Bunching Machine and Double Twist Bunching Machine
Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects. Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth operation. It is suitable for stranding conductors such as bare copper wire, tinned wire, silver-plated wire, and enameled wire with seven or more strands, and core wire double twist.
Specification
Features
1. Ethernet port is reserved for IoT access, which can display the speed, stranding details, line speed, equipment maintenance, etc.
2. PLC control+Magnetic powder clutch, perfectly ensure the constant tension from empty to full spool.
3. With bearing type polished rod traversing, traversing width and lay length is adjustable.
4. Suitable for stranding of extremely fine conductors (alloy wire, tin-plated wire, silver-plated wire, enameled wire, etc. with seven or more strands) in aerospace, medical devices, mobile phones, laptops, etc.
Technical Specifications
(Custom configurations available upon request.)
|
Model
|
FC-500B
|
FC-650B
|
FC-650B pro
|
FC-800B
|
FC-651D
|
|
Wire dia. (mm)
|
Φ0.08-0.45
|
Φ0.15-1.04
|
Φ0.20-1.70
|
Φ0.20-1.70
|
Φ0.16-1.04
|
|
Cross section (mm2 )
|
0.05-2.5
|
0.35-6.0
|
1.0-16.0
|
1.0-16.0
|
0.4-6.0
|
|
Core wire dia. (mm)
|
Φ0.5-1.5
|
Φ0.8-3.0
|
Φ1.5-4.0
|
Φ1.5-4.0
|
N/A
|
|
Overall Diameter of Stranded Core
|
Φ1.0-3.0
|
Φ1.6-6.0
|
Φ3.0-8.0
|
Φ3.0-8.0
|
N/A
|
|
Pitch (mm)
|
6.3-52.3
|
11.6-100
|
20-160
|
23-160
|
10-100
|
|
Spool size (mm)
|
Φ400-500
|
Φ500-630
|
Φ500-630
|
Φ630-800
|
Φ500-630
|
|
Max speed (rpm)
|
3000
|
2000
|
1600
|
1600
|
2000
|
|
Stranding direction
|
S/Z
|
S/Z
|
S/Z
|
S/Z
|
S/Z
|
|
Main motor power
|
5.5KW
|
7.5KW
|
11KW
|
15KW
|
7.5KW
|
|
Tension control
|
PLC+Magnetic powder clutch
|
||||
|
Protection
|
Automatic brake on wire break by electromagnetic brake
|
||||

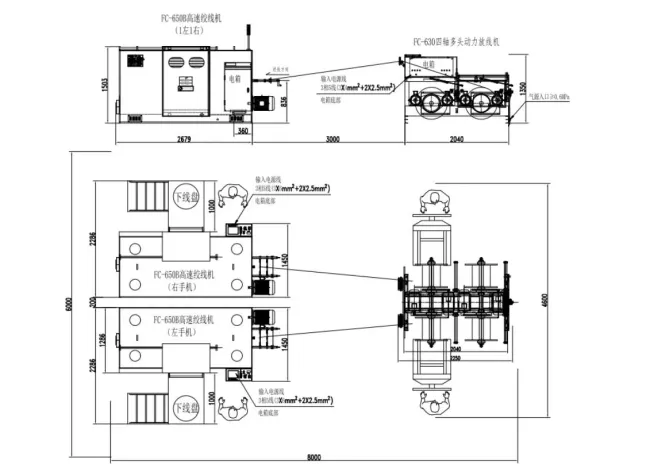

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
Kunshan Fuchuan Electrical & Mechanical Co., Ltd.
Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Stranding machine
Back-twist bunching machine
Signle twist bunching machine
Signle twist bunching machine
Torsion-free cable-laying machine
Pay-off machine
Extruding machine
Rewinding machine
Certifications
Fuchuan has obtained dozens of certifications and certificates, and hundreds of patents.
With ISO9001
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 60–90 days.
A: Standard models ship in 15–30 days; customized units require 60–90 days.
Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.
Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.
A: Absolutely! We accept OEM and ODM.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
