40mm 75mm Focal Length Uncooled Infrared FPA Thermal Camera Module 1024x768
Price:
negotiation
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
JOHO
Product Description

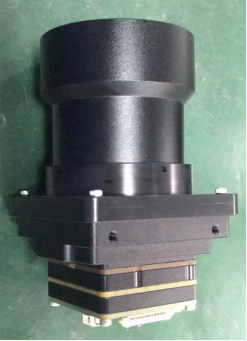

JHC202-1-M1024A Uncooled IR Thermal Camera Module
Application
We provide uncooled thermal imaging modules to research institutes and enterprises for the thermal camera development and system intergration.
Technical Specification
| Detector | Uncooled Infrared FPA |
| Pixel | 1024×768, 17μm |
| Spectral band | 8μm～14μm |
| Power consumption | ≤ 3W@25℃ stable state |
| Power supply | DC 12V |
| Starting time | ≤ 15s |
| Working temperature | -40℃ ~ +60℃ |
| Storage temperature | -50℃ ~ +70℃ |
| NETD | ≤ 50mk(F/1) |
| Motor drive | drive 2-way DC motor, PWM adjustment |
| Dimension | Subject to real product |
| Weight | ≤ 96g |
| Video output | 1-way PAL analog video, 1-way LVDS digital video |
| Communication | RS232 serial port |
| Recommended lens A: | |
| Focal length | 40mm |
| F number | 0.9 |
| Effective imaging surface | Ø21.8 |
| Exposed mirror coating | AR |
| FOV (H × V) | 24.6 ° × 18.5 ° |
| Focusing range | fixed focus / optical athermalization |
| Focusing range | fixed focus / optical athermalization |
| Sealing grade | IP67 (front of lens) |
| Weight | <256g |
| Recommended lens B | |
| Focal length | 75mm |
| F number | 1.0 |
| FOV (H × V) | 13.24 ° × 9.95 ° |
| Lens type | electric focusing |
| Imaging range | 20m ~ ∞ |
