3mm 4mm 5mm LSHF FR PP Filler Yarn For Flame Retardant Cable Manufacturing
Russia Cable Factory using 3mm 4mm 5mm Polypropylene LSHF FR Filler Yarn
LSHF FR PP FILLER YARN
Longtai offers low smoke, halogen free, flame retardant version of the polypropylene (PP) filler yarns to meet the different demand of your flame retardant (FR) cables.
• LSHF FR PP Filler is environmentally friendly flame retardant material, with light weight and excellent tensile strength. It can easily make the wire & cable round and smooth. This material is halogen- and asbestos free
• LSHF FR PP Filler TWISTED due to the twisting, it has the accurate diameter and can easily make the cable very round and smooth.
• LSHF FR PP Filler export to Russia Cable and Wire factory manufacturer in "Right" twist, regular size from 3mm to 16mm diameter, paper tube size : ID 76*L 432* OD 360mmMax
Specifications:
|
Specification |
Unit |
LSHF FR PP Filler |
LSHF FR PP Filler Twisted |
|
Linear Density |
Denier(D) |
3,800-200,000 |
3,800-60,000 |
|
Diameter |
mm |
0.8-8 |
0.8-5 |
|
Breaking Strength |
g/D |
2-3.5 |
2-3.8 |
|
Elongation |
% |
≥20 |
≥20 |
|
Oxygen Index |
% |
≥30 |
≥30 |
|
Halogen |
|
Free |
Free |
|
Color |
- |
White, Blue, etc. |
White, Blue, etc. |
Please Note: 9Denier=1g/km
Tube & Bobbin size:
| Size | A | B | C |
| ID (mm) | 38, 50, 76 | 38, 50, 76 | 50, 76 |
| Tube Height (mm) |
250-260 | 300-320 | 400-430 |
| OD (mm) |
180-250 | 200-350 | 300-500 |
| Weight (kg) |
2.5-8 | 5-15 | 15-40 |

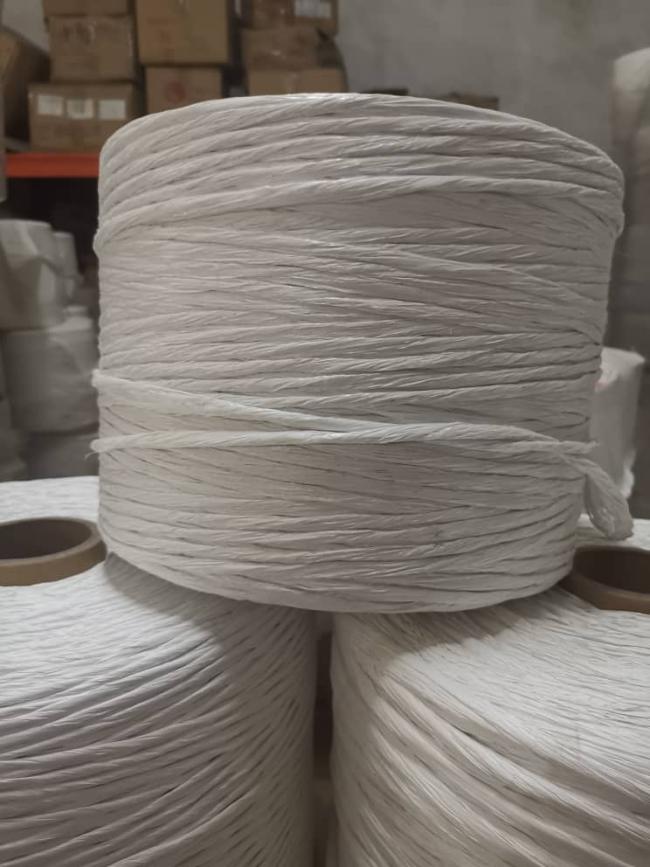

Product Details :

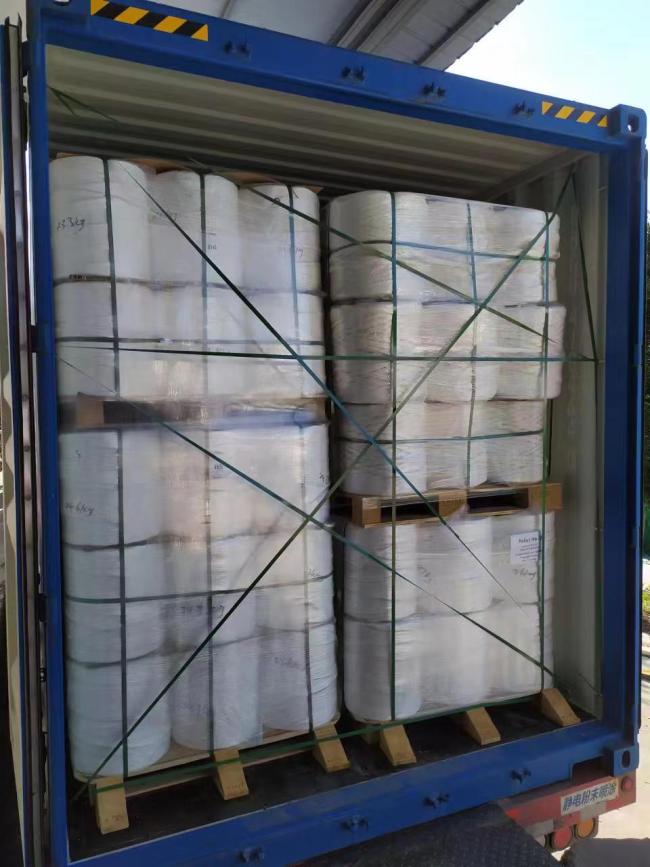

Package Details:
