Blue Low Smoke Halogen Free Flame Retardant Proplylene PP Filler high cable filler material
Blue low smoke halogen free flame retardant proplyphene filler yarn
Appearance
The product should be white ,dry clean,soft and uniform thickness.
The specifications of the filling line size should comply with the provisions in the table
| Item(mm) | PP filler yarn(non-twist) | |||||||
| Specifications(mm) | 30 | 60 | 90 | 120 | 160 | 180 | 270 | 360 |
| Membrane width error(mm) | ±3.0 | ±5.0 |
±6.0
|
|||||
| Thickness(mm) | 0.08 | |||||||
| Thickness of the error(mm) | 0.01 | |||||||
| After Nian corresponding diameter(mm) | 2.0 | 2.0 | 4.0 | 4.5 | 5.0 | 5.5 | 6.0 | 7.0 |
| The diameter tolerance(mm) | ±0.3 | ±0.4 | ±0.6 | ±0.6 | ±0.6 | ±0.7 | ±0.7 | ±0.7 |
| Twist(mm) | 3.0 | 3.0-3.5 | ||||||
Physical and mechanical properties shall meet the provisions of the table
| Properties | Breaking strength(flame retardant) ≥N |
elongation≤ |
Unit weight(flame retardant)g/m |
Oxygen index(%) |
Corresponding value |
| 30 | 49(50) | 15 | ≤1.03 | ≥28 | 2.0±0.3 |
| 60 | 63(100) | 20 | ≤2.02(1.70) | 3.0±0.4 | |
| 90 | 95(150) | 20 | ≤2.90(2.55) | 4.0±0.6 | |
| 120 | 127(200) | 25 | ≤3.86(3.4) | 4.5±0.6 | |
| 160 | 158(200) | 25 | ≤4.64(4.38) | 5.0±0.6 | |
| 180 | 191(200) | 25 | ≤5.42(4.96) | 5.5±0.7 | |
| 270 | 220(200) | 30 | ≤8.44(7.60) | 6.0±0.7 | |
| 360 | 220(200) | 30 | ≤11.5 | 7.0±0.7 |

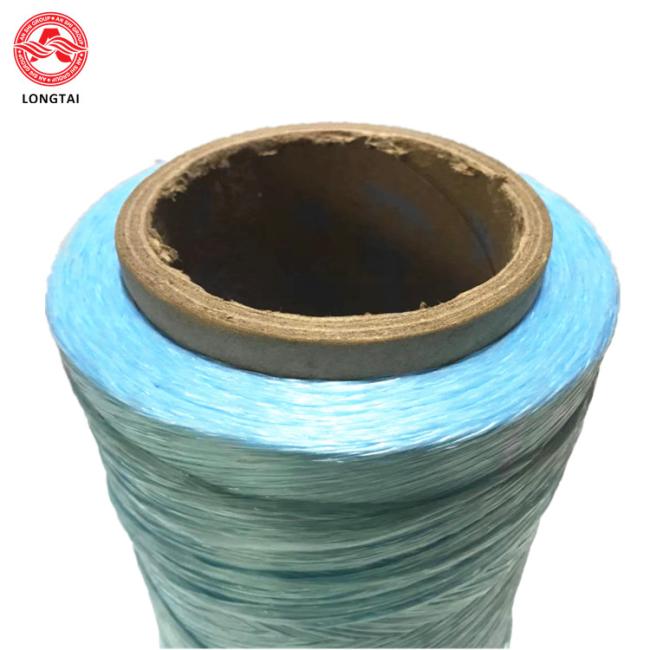

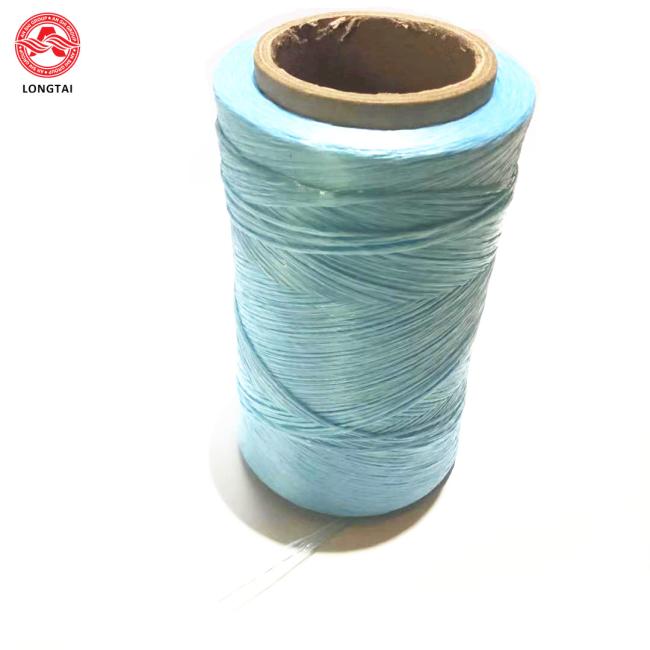

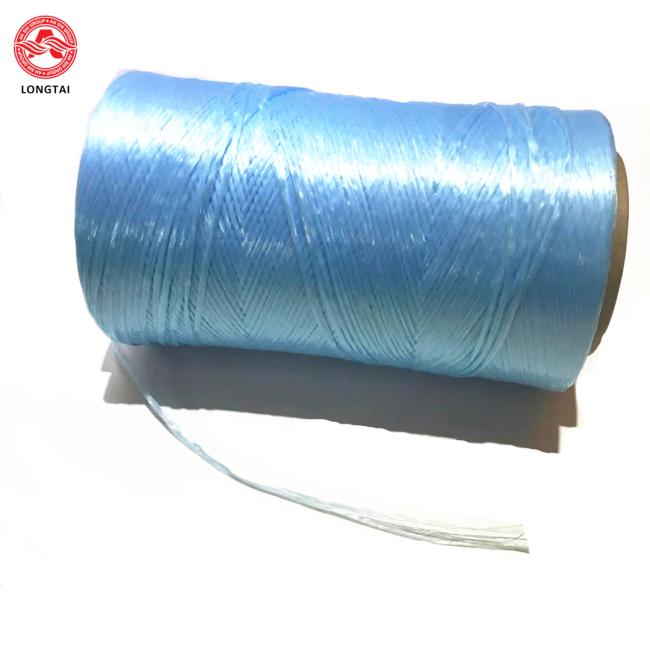

Product show:
