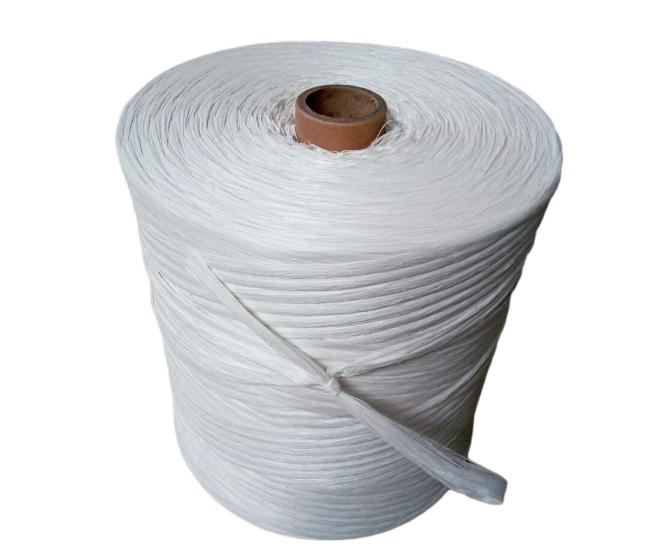

PT-5 LSOH Low Smoke Cable PP Filler Yarn 25740D Replace Glass Fiber Rope
PT-5 LSOH Low Smoke And Little Proportion Cable Filler 25740D Replace Glass Fiber Rope
LSZH Flame Retardant PP Filler Yarn
Composition: Polypropylene
Application: PP Filler Yarn is mainly used as the wire and cable filler. It is a good and economical substitute as cable filler. The color is available in natural white or other colors with different deniers as per customers’ specifications.
Halogen Flame Retardant PP filler yarn is high quality of filler, can produce in untwist or twisted round type.

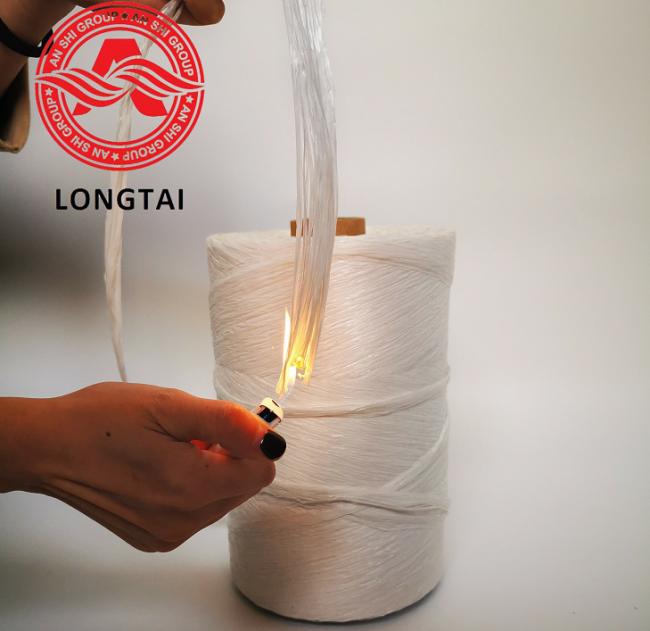

High breaking strength over 2.5g/d, the average Oxygen over than 28%. No Burning when the fire is removed. No dropping after burning, and very low smoke.
Features:
Best material property,low-smoke,best breaking load,eco-friendly,halogen-free, fire-retardant, reducing the production cost and enhance cable performance.In case of fire ,not burning and with slight smoke.
Usage:

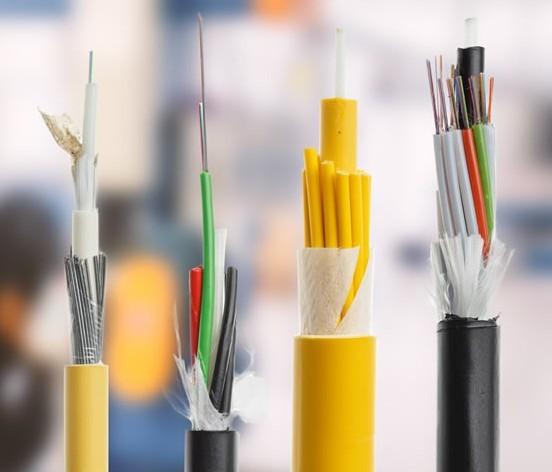

Widely use for Flame retardant Cable, special cable and so on. hot sell in Europe, USA and Cananada.
The material will enhance your cable in better proepety.
Technical Data Sheet:
| Item | Unit | Low smoke Halogen Free FR Filler Yarn |
| Material | Poly Propylene | |
| Diameter | mm | 1 mm~25 mm |
| Density | g/cm³ | 0.92 |
| Tenacity | g/d | ≥2.5 |
| Average Oxygen index | % | ≥28% |
| Elongation | % | ≥15% |
| Heat shrinkage | % | ≤5% |
| Halogen | PPM | ≤1000 |
| Burning smoke | Smaller smoke | |
| Appearance | Fibrillated | |
| Package | ID 54 * H 258 mm | |
| ID 90 * 260 mm | ||
| ID 76 * 432 mm |
| Linear Density | 12KD | 18KD | 30KD | 60KD | 90KD | 120KD | 630KD | 1130KD | 1630KD |
| Size g/m ±10% | 1.33g/m | 2g/m | 3.67g/m | 6.67g/m | 10g/m | 13.3g/m | 70g/m | 112g/m | 182g/m |
| Diameter | 1.5mm | 2mm | 3mm | 4mm | 5mm | 6mm | 12mm | 16mm | 20mm |
