Low Smorking White 1200Tex FR PP Filler Yarn Fire Resistant For Cable

Price Negotiable

Price: negotiable

MOQ: 1000kgs

Delivery Time: 25-30days

Brand: Longtai

Product Description

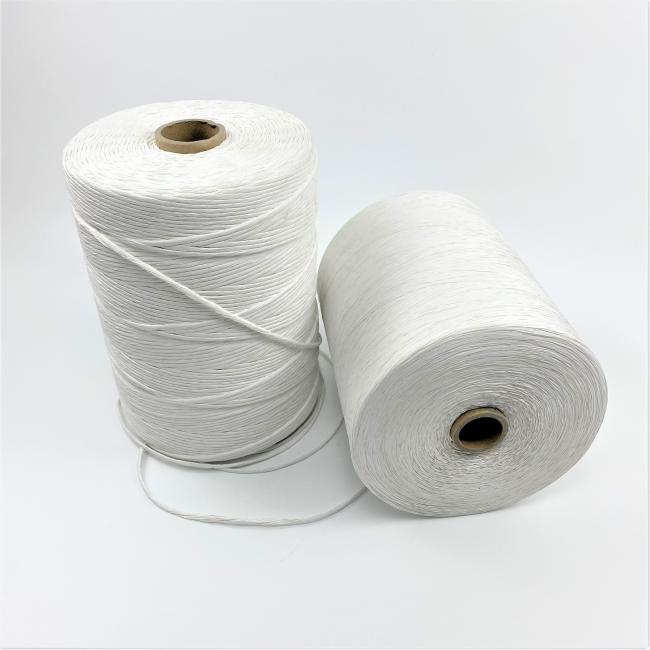

LSHF Flame Retardant PP Filler Yarn for Electric Cables

Low Smorking Flame Retardant PP Yarn is made of 100%Polypropylene or PP+Caco3. The advantage of Filler Yarn are environmentally friendly and low smoke. Low Smorking Flame Retardant PP Yarn is very good material which can instead of glass fiber rope and asbestos rope. It is use for lots of different types of cable.

1. 100% PP filler yarn

Linear Density	12000D	18000D	28000D	33000D	48000D	60000D	70000D	90000D
(weight)g/m	1.33+0.13 -0.13	2+0.2 -0.2	3.11+0.31 -0.31	3.67+0.37 - 0.37	5.33+0.53 -0.53	6.67+0.67 -0.67	7.77+0.77 -0.77	10+1.0 -1.0
Diameter (mm)	1.5	2	2.5	2.7	3.2	3.8	4.5	5
Breaking Strength (kg) equal or more	24	36	56	66	96	120	140	180
(%) Breaking Elongation equal or more	10	10	10	10	10	10	10	10

2. Standard cable pp filler yarn with mixed Caco3 :
   0.5----30MM,   4----10 TPM
   Standard pp cable filler yarn, price is not high, good effect of cable filling,
   no knot packing, can be used in kinds of cable and wire

Advantage: Cheap price, suitable for large cable.

Linear Density	D	+/-10%	0.5 --30MM Denier:9000D---300KD
Breaking Strength	g/D	0.6--1.4
Breaking Elongation	%	20
Hot Shrinkage rate	%	6	100°C*1min.
Tube size	mm	1 ID: 90, H:255 2. ID: 38, H:220 3. ID: 50, H:270 4. ID: 75, H:440 5. ID: 55, H: 300-400
Packing	5----50KG/ROLL

PP+Caco3 Wire Cable PP Filler Specificatioms
Item	Unit	standard	Remark
pp filler Fineness	D	specification±8%	9000D-300000D
pp filler Breaking	g/d	>0.6g/d--1.4
tenacity
Tensibility	%	<20
shrinkage	%	<10	120*30min
in hot air
Appreance	Natural Color or Milky White
