Blue Low Smoke Halogen Free PP Filler Yarn Flame Retardant For FR Cables
Blue low smoke halogen free flame retardant polypropylene (PP) filler yarns for FR cables
Jiangxi Longtai offers low smoke halogen free flame retardant polypropylene (PP) filler yarns to meet the different demand of your FR cables.
LSHF FR PP Filler is environmentally friendly flame retardant material, with light weight and excellent tensile strength. It can easily make the wire & cable round and smooth This material is halogen- and asbestos free.
Our Cable filler yarn is manufactured with high precision and industry-wide known manufacturing standards. So that uniform consistency is ensured to meet the unique cable needs of our customers.
With complete control over the production process from raw material to finished fiber, we can customize Super Grade Filler to your unique specifications, including Custom-matched colors, Fibrillation levels, and fiber diameter/density, Tensile strength, toughness, and elongation.
About PP cable Filler
Use: For cable filler, OPTICAL FIBER FILLER
Denier: 2000D-500KD
Twiste and Plain(Non twisted)
Deatailed specification
Linear Density | 12000D | 18000D | 22000D | 28000D | 33000D | 48000D | 60000D | 70000D | 90000D |
(weight)g/m | 1.33+0.13 -0.13 | 2+0.2 -0.2 | 2.44+0.22 -0.22 | 3.11+0.31 -0.31 | 3.67+0.37 - 0.37 | 5.33+0.53 -0.53 | 6.67+0.67 -0.67 | 7.77+0.77 -0.77 | 10+1.0 -1.0 |
Diameter (mm) | 1.5 | 2 | 2.3 | 2.5 | 2.7 | 3.2 | 3.8 | 4.5 | 5 |
Breaking Strength (kg) equal or more | 24 | 36 | 44 | 56 | 66 | 96 | 120 | 140 | 180 |
(%) Breaking Elongation equal or more | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Hot Shrinkage rate (%) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Application :
It is used to the filling the power cable, control cable, mine cable, telecom cable.

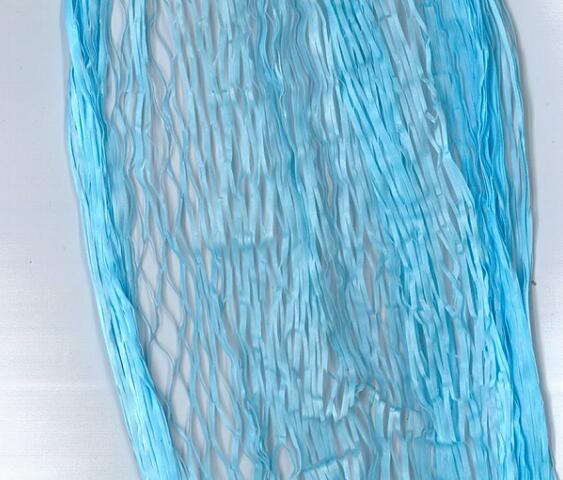

This product is made of polypropylene as base material, adding environmental protection flame retardant agent, and processed by special machine to make high-strength mesh filling material, which is mainly used for filling flame-retardant special wire and cable. At the same time, it can increase the tensile strength of cable and make the cable round.

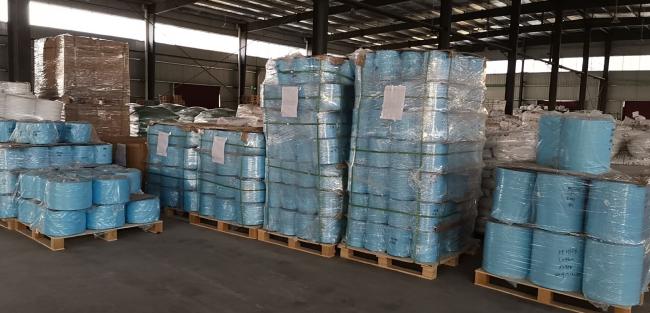

Package:
In Roll 7MT/20FCL with pallet

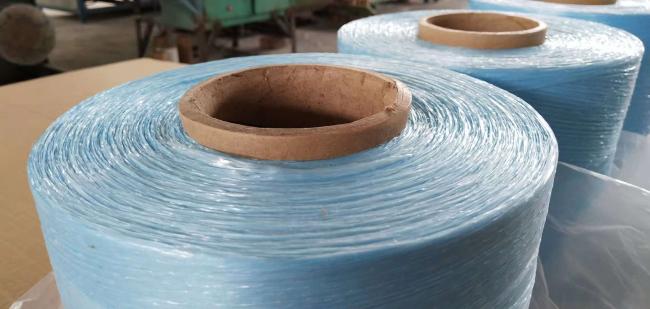

Tube & Bobbin Sizes :
Our Superior Packing service ables us to provide cable filler on large formate spools that support longer production runs for cable manufactures, which eliminates the need to stop the machine and change the filler yarn spool frequently, ultimately decreasing production time and increasing efficiency of cable manufactures.
