White Emergency Medical Disaster Relief Tents Windproof Customized Logo
Strong Windproof White Emergency Medical Disaster Relief Tents
General Details

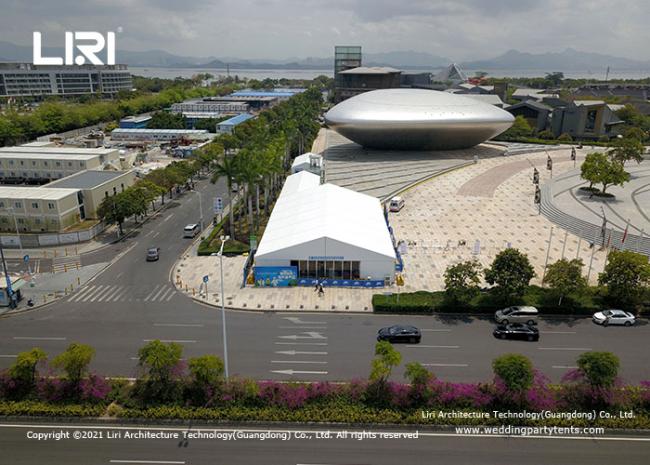

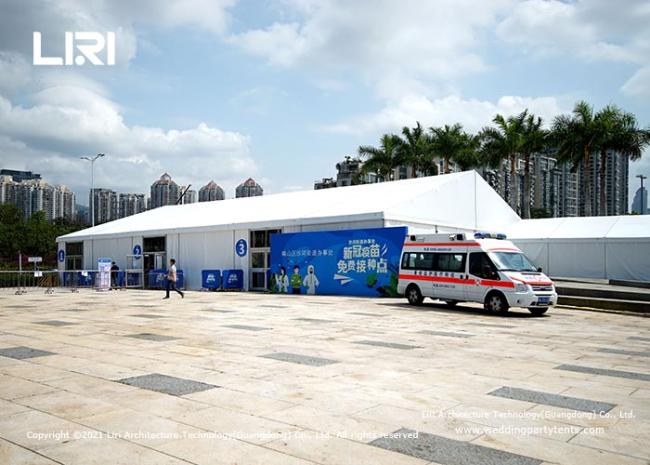

The spread of the epidemic has led to insufficient hospitals. Expansion hospitals and solving medical problems have become the primary issues. Liri Rescue Tent can produce prefabricated aluminum alloy pipes at the factory in advance and transport them to the site. They can quickly deploy the solutions of medical tents, field hospitals and square cabin hospitals. The hospitals can be built and put into use in 1-3 days at the earliest, improving the speed of medical rescue.

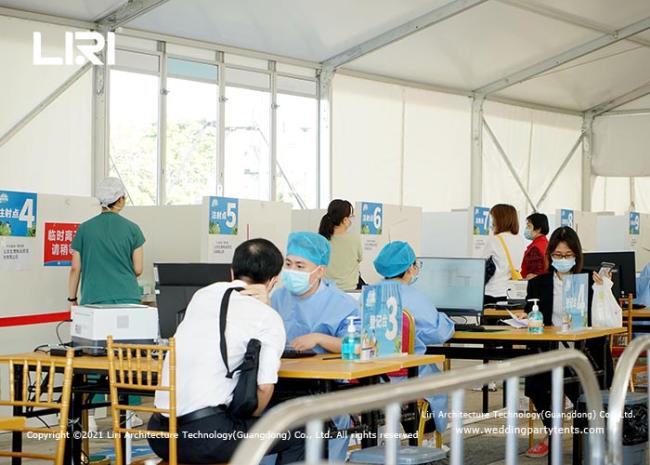

The quickly assembled rescue Field Hospital Tent can be freely divided inside to become a separate room. And it can also provide a collective isolation resting area to ensure the safety and rest of medical staff.
Essential details
- Place of Origin:Guangdong, China
- Brand Name:LIRI TENT
- Item Name:Clear Span Tent
- Sail Material:PVC
- Frame:hard pressed extruded aluminum alloy
- Side Wall:PVC walls,glass wall,ABS wall,sandwich panel wall,etc.
- Roof Cover:850g/sqm double PVC-coated polyester textile
- Connectors:(aluminum) 36 x 36 x 2mm, 32x 32x 2mm sHot-DIP Galvanized
- Ground Situation:grassland,earth land,asphalt,cement ground,marble,etc.
- Wind Resistance:100 km/h
- Fixing Solution:ground anchor, expandable bolt, weight plate, etc.
- Service Life:More than 15 years
Specification
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| NPT | 3m | 3m | 2.6m | 3.35m | 100x48x3mm(4-channel) |
| NPT | 4m | 3m | 2.6m | 3.52m | 100x48x3mm(4-channel) |
| NPT | 5m | 3m | 2.6m | 3.71m | 100x48x3mm(4-channel) |
| NPT | 6m | 3m | 2.6m | 4.05m | 100x48x3mm(4-channel) |
| NPT | 8m | 3m | 2.6m | 4.24m | 100x48x3mm(4-channel) |
| NPT | 10m | 3m | 2.6m | 4.4m | 100x48x3mm(4-channel) |
| NPT | 12m | 3m | 2.6m | 4.76m | 100x48x3mm(4-channel) |
