Glass Wall TFS Tent UV Resistant / 20 By 20 Tent For Exhibiton
Glass Wall TFS Tent UV Resistant / 20 By 20 Tent For Exhibiton
TFS Tent Reputation :
1. The first tent manufacturer established in 1997 in China.
2 . The largest tent manufacturer in China which covers 30, 000sqm and including 20, 000sqm building area.
3 . The most reliable tent supplier. Exported to over 80 countries, and maintaining excellent reputation,
4 . The NO. 1 tent exporter for four years in China.
5 . Engieer's Company, the owner of Liri Tent is more concern quality and safety than you.
Description :
It is widely used for exhibiton, golfing, tennis, horse racing, motor sport or any other type of events, our innovative and user- friendly Two StoryTent systems are a sure winner every time. We can enlarge the tent with the modular bay as well as diminish the tent size according to your specific requirement, making your events more special and attractive.
Specifications :
|
Type |
Span Width |
Bay Distance |
Eave Height |
Ridge Height |
Main Profile |
|
CBT |
15m/49.2' |
5m/16.4' |
3.87m |
8m |
204x120x4mm(4-channel) |
|
CBT |
20m/65.6' |
5m/16.4' |
3.87m |
8.8m |
204x120x4mm(4-channel) |
|
CBT |
25m/82' |
5m/16.4' |
3.87m |
9.9m |
204x120x4mm(4-channel) |
|
CTH |
20m/65.6' |
5m/16.4' |
3.89m |
8.9m |
300x120x5mm(4-channel) |
|
CTH |
25m/82' |
5m/16.4' |
3.89m |
10m |
300x120x5mm(4-channel) |
|
CTH |
30m/98.4' |
5m/16.4' |
3.89m |
11.2m |
300x120x5mm(4-channel) |
|
CTH |
40m/131.2' |
5m/16.4' |
3.89m |
13.5m |
300x120x5mm(4-channel) |
|
The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size or shape is available. |
|||||
Structure :
Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.
Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
Wind Loading: max. 100km/h (can be reinforced)
Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
Packages:
1. aluminum frame packed in membrane film
2. hardware packed in solid carton box
3. roof and sidewall in professional PVC carry bag

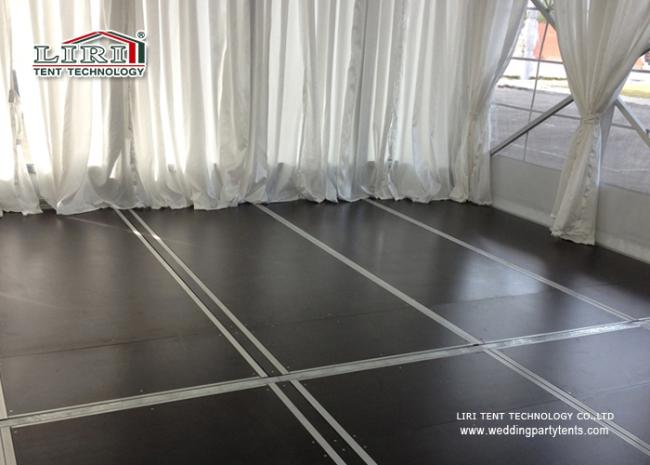

Flooring :
