Blockout PVC Roof Cover Sport Event Tents 15m Ridge Height Polygon Tent Waterproof
Blockout PVC Roof Cover Sports Event Tent 15m Ridge Height Polygon Tent

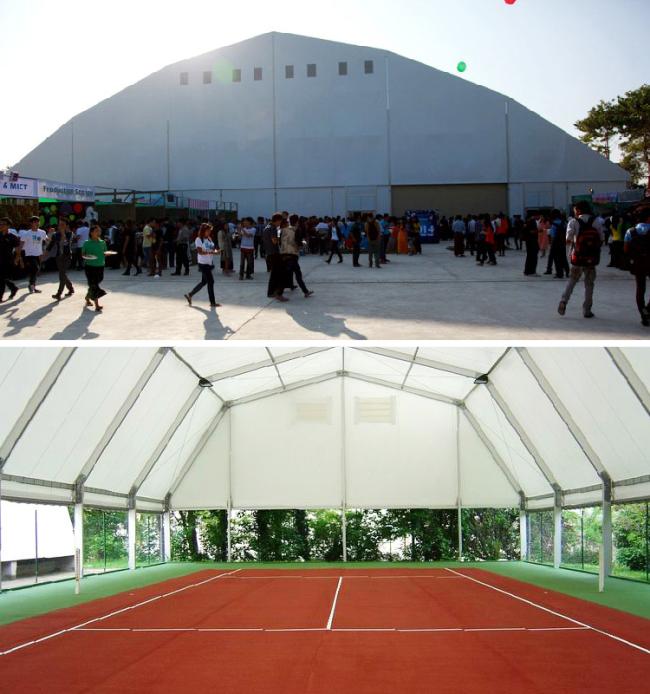

White roof covers & sidewalls is flame retardant, anti-UV and waterproof which is popular used for sport events. Liri provide all kinds of different shape and style tent, like A frame, arcum, dome, curve and so on. Liri sport event tents are nowadays to be found at nearly all renowned sports events. Permanent space concepts for clubs, such as, for example, for basketball, golf, tennis, football and ice hockey are also to be found in Liri Tent’s range of products. Liri sport event tent, temporary pavilions and structures are in key players and in visible attendance at nearly every major sports events in the world.
1. Specification for Sports Event Tents
Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
Wind load: max. 100km/h (can be reinforced)
Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
2. Optional Accessories of Sports Event Tents
Covers: colourful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Liri Tent Series
|
|
Span Width |
Bay Distance |
Eave Height |
|
Regular |
3m~60m |
3m/5m |
2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
|
Dome |
3m~40m |
3m/5m |
2.6m/3m/3.23m/3.88m/3.92m |
|
High Peak |
3m~10m |
3m/4m/5m/6m/8m/10m |
2.5m/2.6m |
|
Curve |
15m~40m |
5m |
3.87m/3.89m |
|
Polygon |
10m~60m |
5m |
4m |
|
Double Decker |
10m~30m |
5m |
5m |
Please note this is a general description.For exact tent types and sizes please feel free to contact us.
