Multi - Functional White PVC Sidewall Outdoor Wedding Marquee , 40m Clear Span
Strong Frame 40m Clear Span Marquee Canopy Tent With White PVC sidewalls For Temporary Usage
Applications:

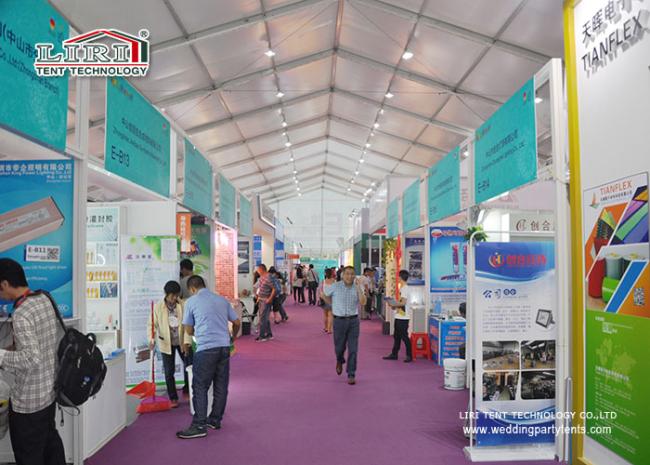

It is widely use for the outdoor events , rental , party , exhibition , reception , concerts and so on . Based on the multi - functional purpose , people just need to change the different decoration will be ok. For such a big tent , it can help you to save a lot of cost on the buliding , and it can also use for the temporary purpose.
| Dimension | Clear Span | Eave Height | Ridge Height | Bay Distance |
| TH 40m | 40 m | 4m | 10.4 m | 5m |
| Length | No limitation | |||
| Main Structure Profile | 300X120X5mm | |||
Description:
This series of tent, clear span from 10m to 18m, with 3.3m side height, it is sutiable to use for the outdoor event party, and some small exhibition.
Structure
Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.
Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
Wind Loading: max. 100km/h (can be reinforced)
Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
Life Span:
For the structure of the tent, it is strong enough for permanent or semi - permanent. The frame is using the 6064/ T6 aluminum frame, and it can use for about 20-25 years. If for the pvc roof cover, it can use for about 8 - 10 years.
- If it is concrete ground , pls use the expandable bolts
- If it is termac grond or grass ground or sand ground or other soft gronds , pls use the steel anchors .
- If it is marble or tile ground or other kind indestructible grounds , pls use the weight plates system
- If you will make the concrete bases to fix the tent , pls use the embeded bolts M 24 x 500 mm
Optional Accessories
- Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
- Adjustable flooring system, can fix on the uneven land
Packaging:
- aluminum frame packed in membrane film
- hardware packed in solid carton box
- roof and sidewall in professional PVC carry bag
