50m Width White PVC Big Exhibition Thermo Roof Outdoor Large Tents for Fashion Show
50m Width White PVC Big Exhibition the Thermo Roof Tent for Outdoor Fashion Show
Description:
Liri Exhibition Tents are popular used for different International trade show and exhibition in the world. We have been the partner for Canton Fair for 13years since its first application of tent to over 40,000sqm exhibition halls. We provided many different sizes of exhibition tents to different fairs in China.
Application of outdoor exhibition tent
The tent series are widely used as the party tent, wedding tent, exhibition tent, conference tent, festivals celebration tent, corporate events tent or other events, etc.
Specification for wedding tent hall
· Frame struss: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.
· Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
· Connector: reinforced aluminum alloy
· Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
· Wind load: max. 100km/h (can be reinforced)
· Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
· Easy to be assembled and dismantled, movable.
· No pole inside, 100% available interior space.
Liri Tent Series
Tent Roof Type |
Span Width | Bay Distance | Eave Height |
| Regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Double Decker | 10m~30m | 5m | 5m |
Technical data
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| LH | 30m | 5m | 4m | 8.9m | 350x120x5mm(4-channel) |
| LH | 40m | 5m | 4m | 10.5m | 350x120x5mm(4-channel) |
| LH | 45m | 5m | 4m | 11.38m | 350x120x5mm(4-channel) |
| LH | 50m | 5m | 4m | 13m | 350x120x5mm(4-channel) |
| LH | 60 | 5m | 4m | 13.6m | 350x120x5mm(4-channel) |
Optional accessories
covers: Colorful cover, transparent cover, inflatable roof cover
sidewalls: Glass wall, PVC hard wall, sandwich panel wall, fiber glass wall
windows: Dome or square clear PVC windows, mesh window, glass window
doors: Double-swings glass door, single-swing glass door, glass fire door, hard PVC door, rolling door
wooden flooring system
rain gutters (inner roof beam rain gutter or rain gutter between two tents)
lighting, AC, carpet, etc.

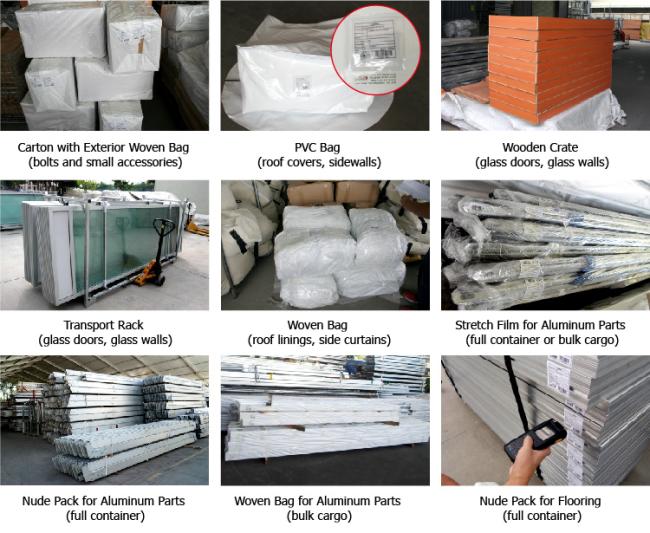

Packaging of Exhibition Tent
1. aluminum frame packed in membrane film
2. hardware packed in solid carton box
3. roof and sidewall in professional PVC carry bag
