Waterproof and Flame Retardant Big Polygon Tent with Colorful Roof Cover for Outdoor Beer Festival
Price:
USD 60-100/sqm
MOQ:
1set
Delivery Time:
within 25days after the order confirmed
Brand:
Liri Tent
Product Description
Big Polygon Tent with Colorful Roof Cover for Outdoor Beer Festival
Liri PG Series:
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| PG | 10m/32.8' | 5m/16.4' | 4m | 7.16m | 204x120x4mm(4-channel) |
| PG | 12m/39.4' | 5m/16.4' | 4m | 7.4m | 204x120x4mm(4-channel) |
| PG | 15m/49.2' | 5m/16.4' | 4m | 8.75m | 204x120x4mm(4-channel) |
| PG | 18m/59' | 5m/16.4' | 4m | 9.15m | 204x120x4mm(4-channel) |
| PG | 20m/65.6' | 5m/16.4' | 4m | 9.42m | 204x120x4mm(4-channel) |
| PG | 25m/82' | 5m/16.4' | 4m | 11.72m | 256x121x5mm(4-channel) |
| PG | 30m/98.4' | 5m/16.4' | 4m | 13.2m | 256x121x5mm(4-channel) |
| PG | 40m/131.2' | 5m/16.4' | 4m | 15.6m | 300x120x5mm(4-channel) |
| PG | 50m/164' | 5m/16.4' | 4m | 16m | 400x120x7mm(4-channel) |
| PG | 60m/197' | 5m/16.4' | 4m | 18m | 400x120x7mm(4-channel) |
| The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size is available. | |||||
- Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
- Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
- Wind load: max. 100km/h (can be reinforced)
- Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
- Easy to be assembled and dismantled, movable.
- No pole inside, 100% available interior space.
Fixing methods:

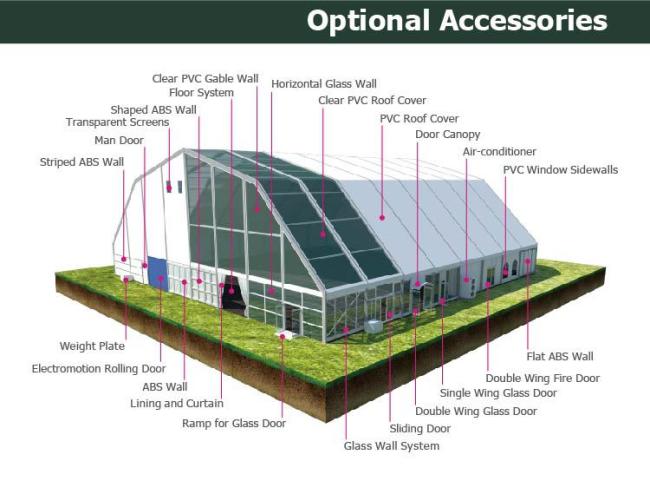

Accessories of Our 5000 People Big Polygon Tent
- Covers: colourful cover, transparent cover, inflatable roof cover
- Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Picture reference:
