20x30m Outdoor High Peak Tents With Double Decker For 500 People Event Function
20x30m Outdoor High Peak Tents With Double Decker For 500 People Event Function
Applications:
It is widely use for the outdoor events , rental , wedding , party , exhibition ,concerts and son on . Based on the multi - functional purpose , people just need to change the different decoration will be ok.
Structure
Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.
Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
Wind Loading: max. 100km/h (can be reinforced)
Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
| Dimension | Clear Span | Eave Height | Ridge Height | Bay Distance |
| BT10 | 10m | 4m | 5.53m | 5m |
| BT 12 | 12m | 4m | 5.83m | 5m |
| BT 15 | 15m | 4m | 6.3m | 5m |
| BT 18 | 18m | 4m | 7.06m | 5m |
| BT20 | 20m | 4m | 7.1m | 5m |
| BT21 | 21m | 4m | 7.25m | 5m |
| BT25 | 25m | 4m | 7.88m | 5m |
| Length | No limitation | |||
| Main Structure Profile | 204*120*4m | |||
Widely used for golfing, tennis, horse racing, motor sport or any other type of events, our innovative and user- friendly . The tent is easy up and cost saving, it is very popular for the rental business and sport events.
Optional Accessories
- Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
- If it is concrete ground , pls use the expandable bolts
- If it is termac grond or grass ground or sand ground or other soft gronds , pls use the steel anchors .
- If it is marble or tile ground or other kind indestructible grounds , pls use the weight plates system
- If you will make the concrete bases to fix the tent , pls use the embeded bolts M 24 x 500 mm
Liri Tent Technology (Zhuhai) Co., Ltd. was established in 1997. Our company is the first professional manufacturer who introduced European advanced tents technology into our own design. Our main products include Modular Aluminium Alloy Structure Tents, Clear Span Tent Structure and Aluminium Alloy Square Pagoda & Summer Gazebo.
Color Option
Want to make your tent more eye-catching, the roof and sidewalls of the tents can fix with different color of pvc material. Like red, blue ,yellow, and so on. In the special events, colorful tents will be attaching more people.

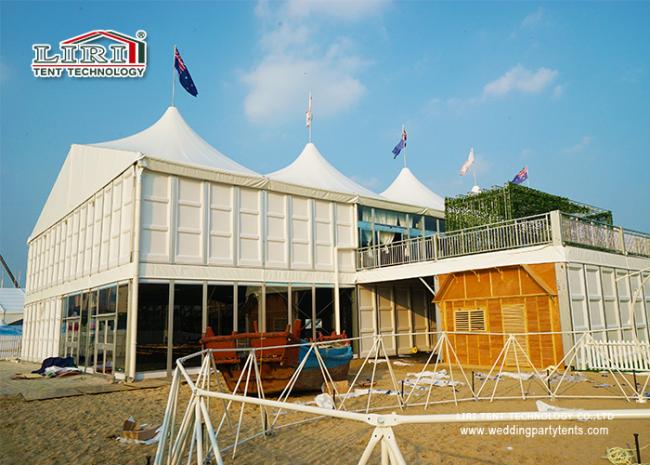

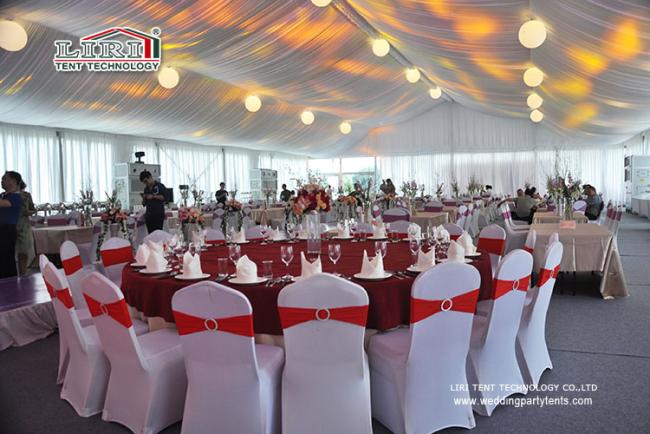

Photo Reference
