100% Waterproof 20m Double Decker Tents for Conference / Banquet

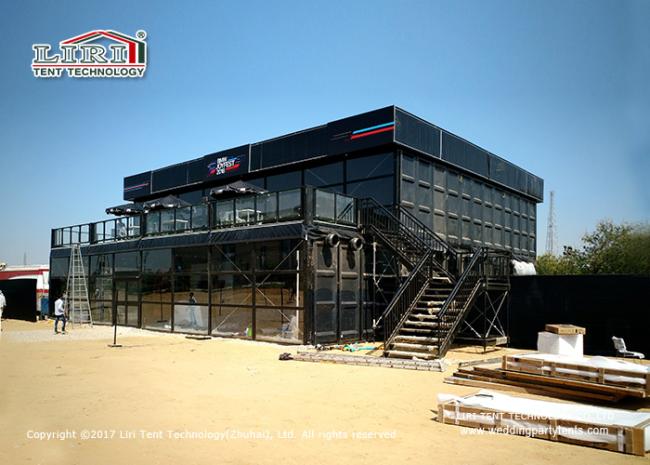

20m Double Decker Conference Tent for Conference
Liri Tent Technology (Zhuhai) Co., Ltd. was established in 1997. Our company is the first professional manufacturer who introduced European advanced tents technology into our own design. Our main products include Modular Aluminium Alloy Structure Tents, Clear Span Tent Structure and Aluminium Alloy Square Pagoda & Summer Gazebo.
To form an integrated management system,Liri Tent introduced advanced ERP system in 2008 and barcode management system in 2013. Liri Tent is also the pioneer to apply CNC machines that achieved the automatic processing of aluminum.
Liri DDS Series:
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | First Floor Height | Main Profile |
| DDS | 10m/32.8' | 5m/16.4' | 6.75m | 8.5m | 3.21m | 300x120x5mm |
| DDS | 15m/49.2' | 5m/16.4' | 6.75m | 9.34m | 3.21m | 300x120x5mm |
| DDS | 20m/65.6' | 5m/16.4' | 6.75m | 10.17m | 3.21m | 300x120x5mm |
| DDS | 25m/82' | 5m/16.4' | 6.75m | 11m | 3.21m | 300x120x5mm |
| DDS | 30m/98.4' | 5m/16.4' | 6.75m | 11.75m | 3.21m | 300x120x5mm |
| DDS | 40m/131.2' | 5m/16.4' | 6.75m | 13.5m | 3.21m | 300x120x5mm |
| ADDS | 15m/49.2' | 5m/16.4' | 6.75m | 8.6m | 3.21m | 300x120x5mm |
| ADDS | 20m/65.6' | 5m/16.4' | 6.75m | 9.43m | 3.21m | 300x120x5mm |
| The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size is available. | ||||||
- Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
- Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
- Wind load: max. 100km/h (can be reinforced)
- Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
- Easy to be assembled and dismantled, movable.
- No pole inside, 100% available interior space.
Double Decker Tent Series of Liri have obtained National Paten
Dimension |
Clear Span | Bay Distance | Eave Height |
| A shape | 3-60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Dome like | 3-40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3-10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve Shape | 15-40m | 5m | 3.87m/3.89m |
| Polygon | 10-60m | 5m | 4m |
| Double Decker | 10-30m | 5m | 5m |
Our contact information
Zhuhai Liri Tent Technology Co., Ltd
Add: No. 7 Dongfu Street, Xin Qing Science & Technology Industrial Park Doumen, Zhuhai, Guangdong, China.
Contact person: Yophy Huang
Tel: +86-756-6320922
Mobile: +86-135 7063 6568
