Black Cube Double Decker Outdoor Event Tents , Wind Loading 100km / hour
Black Cube Double Decker Tent for Exhibition and Trade Show
1. Application of Black Cube Double Decker Tent
It is equipped with glass wall, ABS wall, decoration roof lining, inside curtain, pagoda tent entrance.The tent series are widely used as the party tent, wedding tent, exhibition tent, conference tent, festivals celebration tent, corporate events tent or other events, etc.
2. Specification for Black Cube Double Decker Tent
· Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
· Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
· Connector: strong hot-dip galvanized steel
· Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
· Wind load: max. 100km/h (can be reinforced)
· Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
· Easy to be assembled and dismantled, movable.
· No pole inside, 100% available interior space.
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | First Floor Height | Main Profile |
| DDS | 10m/32.8' | 5m/16.4' | 6.75m | 8.5m | 3.21m | 300x120x5mm |
| DDS | 15m/49.2' | 5m/16.4' | 6.75m | 9.34m | 3.21m | 300x120x5mm |
| DDS | 20m/65.6' | 5m/16.4' | 6.75m | 10.17m | 3.21m | 300x120x5mm |
| DDS | 25m/82' | 5m/16.4' | 6.75m | 11m | 3.21m | 300x120x5mm |
| DDS | 30m/98.4' | 5m/16.4' | 6.75m | 11.75m | 3.21m | 300x120x5mm |
| DDS | 40m/131.2' | 5m/16.4' | 6.75m | 13.5m | 3.21m | 300x120x5mm |
| ADDS | 15m/49.2' | 5m/16.4' | 6.75m | 8.6m | 3.21m | 300x120x5mm |
| ADDS | 20m/65.6' | 5m/16.4' | 6.75m | 9.43m | 3.21m | 300x120x5mm |
| The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size is available. | ||||||

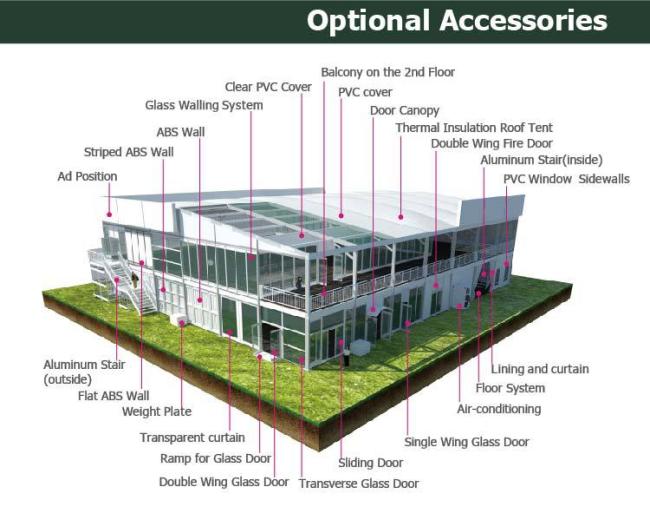

3. Optional Accessories of Black Cube Double Decker Tent
· Covers: colourful cover, transparent cover, inflatable roof cover
· Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
· Wooden Flooring System: VIP cassette flooring, simple cassette flooring
· Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
· Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
· Fixing Methods: ground anchors, weight plate, expandable bolts
· Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
· Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
4. Packaing of Black Cube Double Decker Tent
1. aluminum frame packed in membrane film
2. hardware packed in solid carton box
3. roof and sidewall in professional PVC carry bag
5. Products certificate of Black Cube Double Decker Tent
· National High-tech Enterprises
· ISO 9001:2008 Quality Control Standards
· IFAI Certificate of Membership
· American Rental Association Associate Membership
· Practical Type Patent Certificate
· Liri Tents Trade Mark Certificate
