5 X 5m Windproof Aluminum Pagoda Gazebo Canopy Tent With White Plain PVC Sidewalls
5x5m Windproof Aluminum Pagoda Tent with White Plain PVC Sidewalls
The standard Pagoda Tent series is available in 3x3m, 4x4m, 5x5m, and 6x6m. Pagoda Tent has a side height of 2.5m. This type of Pagoda tent uses a 3 channel 65x65x2.5mm aluminum alloy. The standard 8x8m and 10x10m Pagoda with a 2.6 side height uses a 4 channel 122x68x3mm aluminum alloy and the wind loading is 80km/h (0.3kn/m2).
| Pagoda Tent Series: | ||||||
| Width (m) | Length(m) | Eave height (m) | Ridge height (m) | One 20 feet container can load (sets) | Wind load |
Aluminum main profile |
| 3 | unlimited | 2.5 | 4.3 | 88 to 114 | 80km/h 0.3kn/sqm |
65x65x2.5mm |
| 4 | unlimited | 2.5 | 4.8 | 65 to 90 | ||
| 5 | unlimited | 2.5 | 5.43 | 56 to 79 | ||
| 6 | unlimited | 2.5 | 5.92 | 47 to 70 | ||
| 8 | unlimited | 2.6 | 5.36 | 15 to 18 | 122x68x3mm | |
| 10 | unlimited | 2.6 | 6.38 | 13 to 15 | ||
| Every set of gazebo includes: Aluminum frame, roof cover, four sidewalls without clear windows | ||||||
| General Package: 1. Aluminum Frame--membrane film 2.Hardware--solid carton box 3. Tent cover--PVC carry bag. | ||||||
| 20 feet container: Inner size: 5.69x2.13x2.18m; Usable Volume: 24-26CBM; Allowed Weight: 17.5 ton |
||||||
Liri Tent Series
Tent Roof Type |
Span Width | Bay Distance | Eave Height |
| Regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Double Decker | 10m~30m | 5m | 5m |
Packing:
1. Aluminum frame packed in membrane film
2. Hardware packed in solid carton box
3.Roof and sidewall in professional PVC carry bag
4.Customized packing is available
Certificates:
1. National High-teach Enterprises
2. ISO 9001:2008 Quality Control Standard
3. IFAI Certificate of Membership
4. America Rental Association Associate Membership
5.Practical Type Patent Certificate
6.Liri Tent Trade Mark Certificate
7.Test reports for the PVC flame retardancy
8. Engineering Certificate
Pational Accessories of Pagoda Tent:
· Covers: colorful cover, transparent cover, inflatable roof cover
· Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
· Wooden Flooring System: VIP cassette flooring, simple cassette flooring
· Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)
· Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
· Fixing Methods: ground anchors, weight plate, expandable bolts
· Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
· Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.

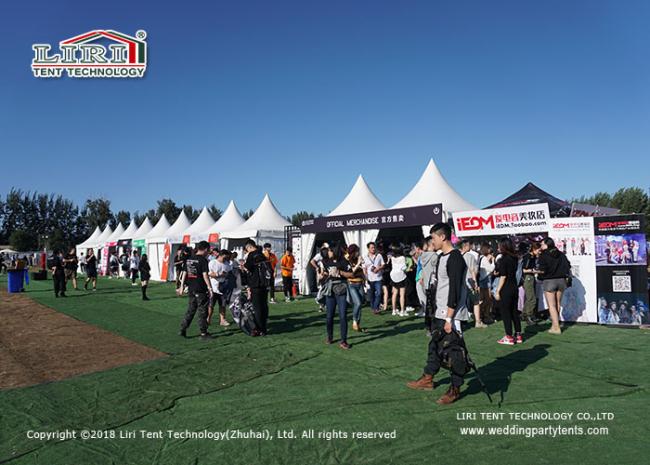

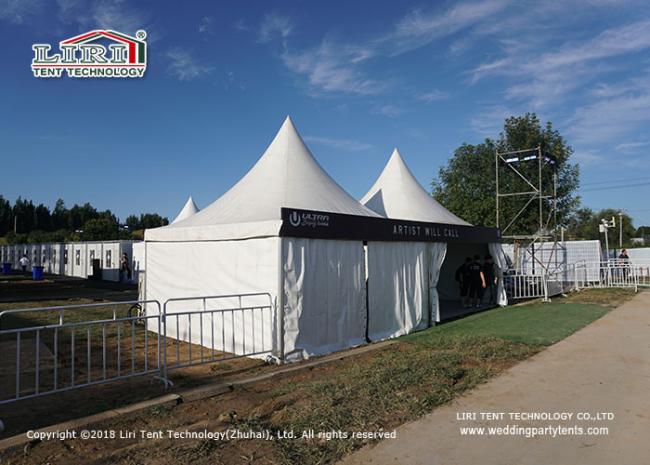

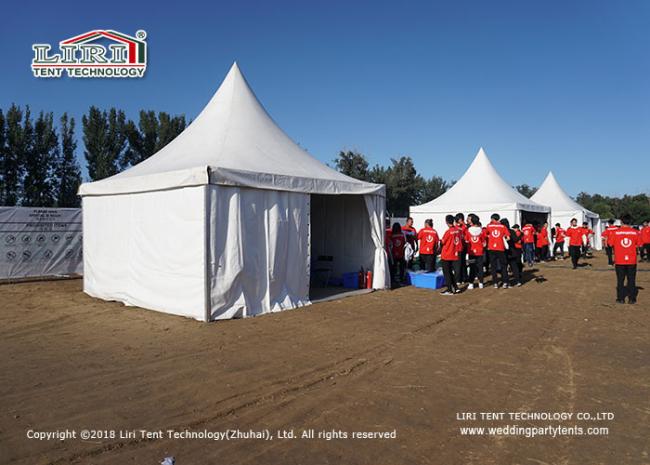

Pictures for reference:
