Clear Span Large Industrial Warehouse Storage Tent Flame Retardant DIN4102 B1 M2
Price:
35 usd per sqm
MOQ:
10 sqm
Delivery Time:
20 days
Brand:
Liri tent
Product Description

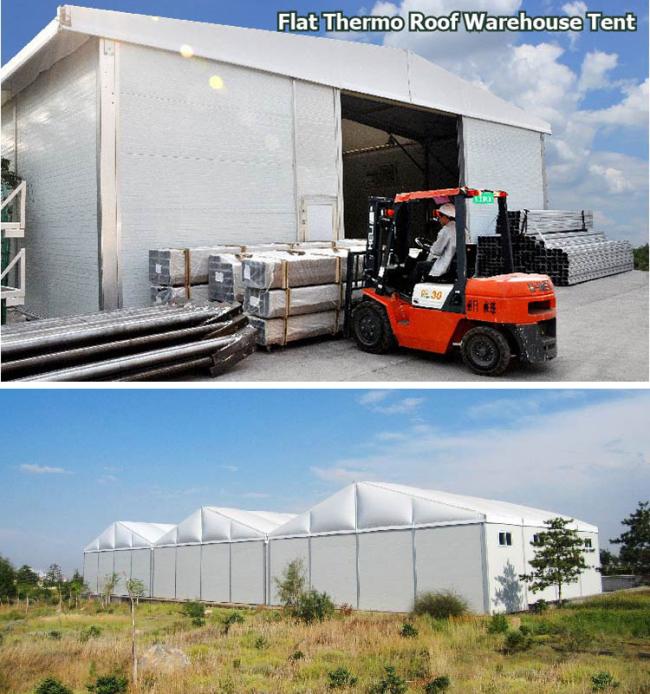

Clear Span Large Industrial Warehouse Storage Tent Structure
Product Description
>> Specifications of Our Large Warehouse Tent
Liri WSBT Series:
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| WSBT | 5m/16.4' | 5m/16.4' | 4.2m | 5.05m | 204x120x4mm(4-channel) |
| WSBT | 7.5m/24.6' | 5m/16.4' | 4.2m | 5.46m | 204x120x4mm(4-channel) |
| WSBT | 10m/32.8' | 5m/16.4' | 4.2m | 5.84m | 204x120x4mm(4-channel) |
| WSBT | 12m/39.4' | 5m/16.4' | 4.2m | 6.16m | 204x120x4mm(4-channel) |
| WSTH | 20m/65.6' | 5m/16.4' | 5.2m | 8.4m | 300x120x5mm(4-channel) |
| WSTH | 25m/82' | 5m/16.4' | 5.2m | 9.2m | 300x120x5mm(4-channel) |
| WSTH | 30m/98.4' | 5m/16.4' | 5.2m | 10m | 350x120x5mm(4-channel) |
| The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size is available. | |||||
- Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
- Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
- Wind load: max. 100km/h (can be reinforced)
- Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
- Easy to be assembled and dismantled, movable.
- No pole inside, 100% available interior space.
>> Applications of Our Large Warehouse Tent
- Widely used for Weddings, Events, Parties, Celebrations,Sports,Tradeshow, Warehouse,etc.

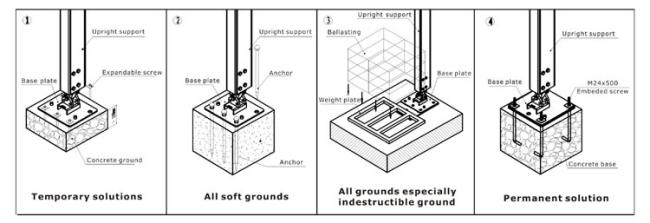

>> Fixing Methods of Our Large Warehouse Tent

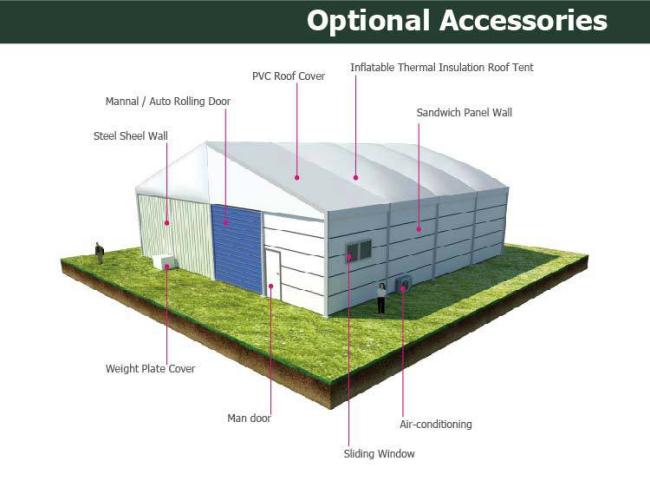

>> Accessories of Our Large Warehouse Tent
- Covers: colourful cover, transparent cover, inflatable roof cover
- Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.

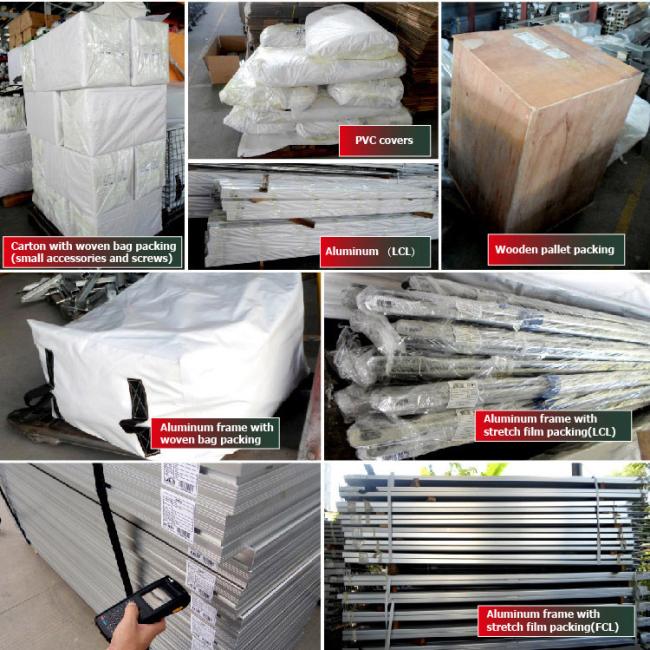

>> Packaging of Our Large Warehouse Tent
- aluminum frame packed in membrane film
- hardware packed in solid carton box
- roof and sidewall in professional PVC carry bag
>> Certificate of Our Large Warehouse Tent
