10 X 20m High Peak Double Decker Tent With Glass Wall For Horse Racing Events Flame Retardant
Flame Retardant 10x20m High Peak Double Decker Tent with Glass Wall for Horse Racing Event
| Item | Width | Eave Height | Ridge Height | Bay Distance | First Floor Height | Main Profile |
| DDS | 10m | 6.75m | 8.50m | 5m | 3.21m | 300x120x5mm |
| DDS | 15m | 6.75m | 9.34m | 5m | 3.21m | 300x120x5mm |
| ADDS | 20m | 6.75m | 8.90m | 5m | 3.21m | 300x120x5mm |
| ADDS | 25m | 6.75m | 9.84m | 5m | 3.21m | 300x120x5mm |
| CSD | 30m | 8.00m | 9.80m | 5m | 4m | 300x120x5mm |
| CSD | 40m | 8.00m | 10.0m | 5m | 4m | 300x120x5mm |
| The length can be extended by 5m bay such as 15m, 20m, 30m, 40m... Customized size or shape is available. | ||||||
Optional Accessories for Tent
Covers: colourful cover, transparent cover, inflatable roof cover
·Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
· Wooden Flooring System: VIP cassette flooring, simple cassette flooring
· Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
· Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
· Fixing Methods: ground anchors, weight plate, expandable bolts
· Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
· Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
| Main Profile | Material: Hard pressed extruded aluminium 6082/T6, 6061/T6 |
| Features: Stainless | |
| Cover | Material: Double PVC-coated polyester textile, 750g-900g/m² |
|
Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant |
|

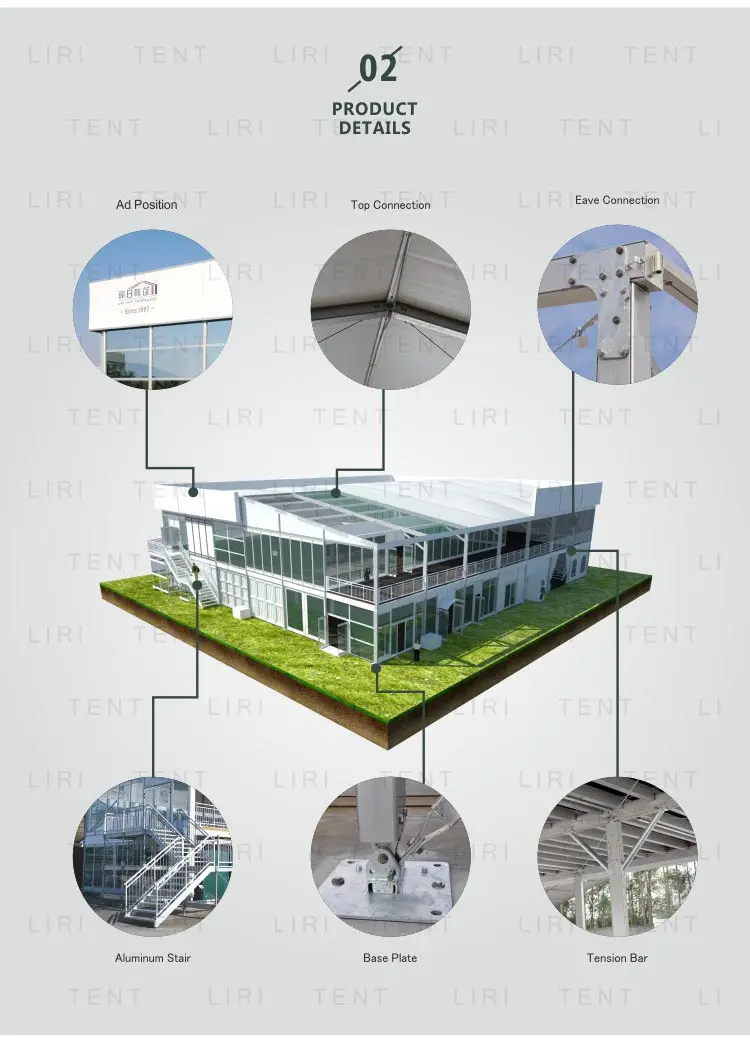

| Eave Connection | Hot-dip Galvanized twin steel plate |
| Wind Loading | 100km/hour |
