Summer Large Outdoor Party Tents , Clear Span Tructure Marquee Event Tent
High quality Clear Span tructure marquee tents, large outdoor party tents
Applications:

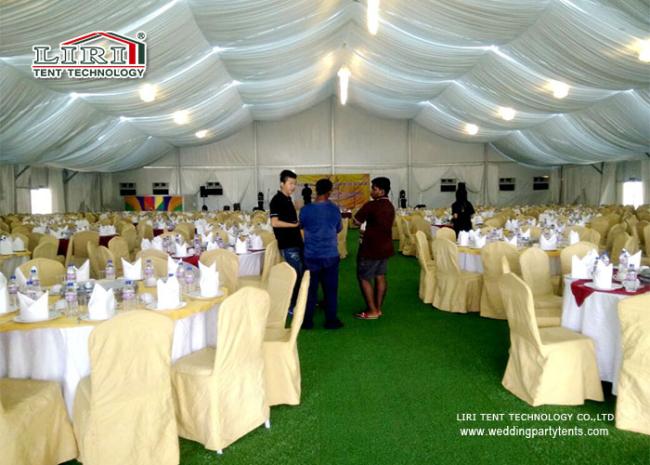

Our wedding tent can be used as movable or permanent structure, full size for all kinds of event tent with different accommodate space. Also this wedding tent is suitable for festival, celebration and other kinds such as church event, lecture and so on.
| Dimension | Clear Span | Eave Height | Ridge Height | Bay Distance |
| BT10 | 10m | 4m | 5.53m | 5m |
| BT 12 | 12m | 4m | 5.83m | 5m |
| BT 15 | 15m | 4m | 6.3m | 5m |
| BT 18 | 18m | 4m | 7.06m | 5m |
| BT20 | 20m | 4m | 7.1m | 5m |
| BT21 | 21m | 4m | 7.25m | 5m |
| BT25 | 25m | 4m | 7.88m | 5m |
| Length | No limitation | |||
- If it is concrete ground , pls use the expandable bolts
- If it is termac grond or grass ground or sand ground or other soft gronds , pls use the steel anchors .
- If it is marble or tile ground or other kind indestructible grounds , pls use the weight plates system
- If you will make the concrete bases to fix the tent , pls use the embeded bolts M 24 x 500 mm

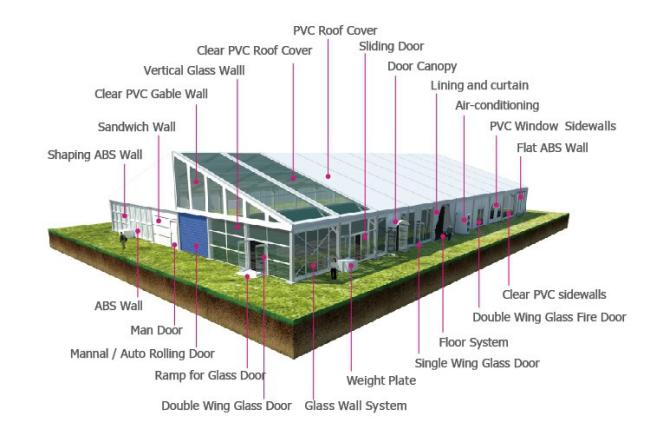

Optional Accessories
- Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Structure
Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.
Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
Wind Loading: max. 100km/h (can be reinforced)
Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
| Tent Roof Type | Span Width | Bay Distance | Eave Height |
| regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| high peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| curve | 15m~40m | 5m | 3.87m/3.89m |
| polygon | 10m~60m | 5m | 4m |
| cube | 10m~30m | 5m |
5m
|
