Luxury Outdoor Event Tents 10x20m With Glass Panel For Dyson Exhibition

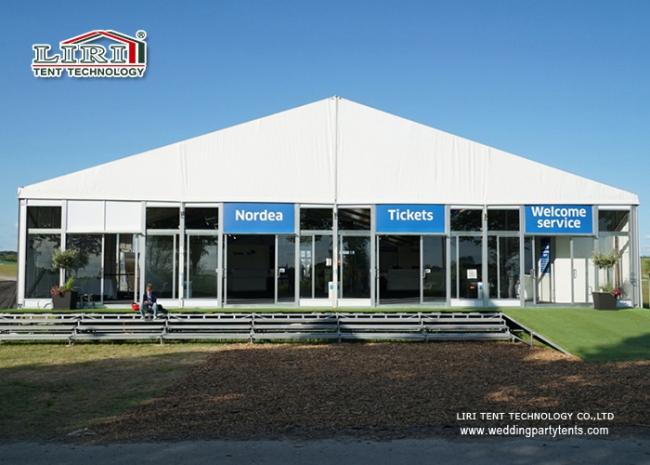

Luxury outdoor event tent 10x20m with glass panel for Dyson Exhibition from LIRI TENT

Big Tent-BTA10-25m

The big tent can be used for exhibition, weddind, party and banquet. We have many optional accessories for sidewalls, not only the glass panel. we also have ABS solid walling, PVC fabric, sandwich panel. And the inner decration, we have lining, curtain, round tables and chairs for you choose. The desing is up to you.You can use Big Tent-BTA series for both temporary and permanent solutions.

The clear span of the Big Tent-BTA series is from 10m to 25m and the main profile size is 204x110x4mm. Big Tent-BTA series are modular structures and can be increased or decreased in bay distance of 5m according to the clients’ requirements. The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6). The PVC covers use PVC-coated polyester textile and flame retardance which is based on the European standard DIN 4102B1, M2. The big tent-BTA series can resist up to 100km/hr wind loading.

>> Specifications of Our Outdoor Event tents

Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
Wind load: max. 100km/h (can be reinforced)
Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.

>> Accessories of Our Outdoor Event  Tents

Covers: colourful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.

>> Packaging of Our Outdoor Exhibition Tents

aluminum frame packed in membrane film
hardware packed in solid carton box
roof and sidewall in professional PVC carry bag
