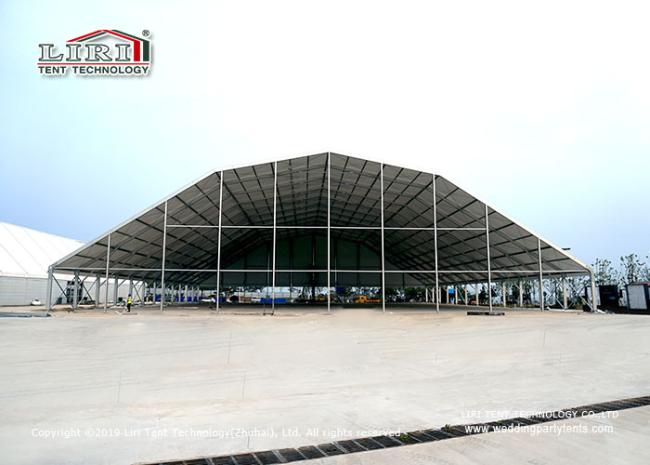

Large Aluminium 50x60m Movable Polygon Marquee With White Roof Covers For Outdoor Event
Large Aluminium 50x60m Movable Polygon Marquee with white roof covers for outdoor event
- Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
- Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
- Wind load: max. 100km/h (can be reinforced)
- Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
- Easy to be assembled and dismantled, movable.
- No pole inside, 100% available interior space.
Liri Tent Technology (Zhuhai) Co., Ltd. was established in 1997. Our company is the first professional manufacturer who introduced European advanced tents technology into our own design. Our main products include Modular Aluminium Alloy Structure Tents, Clear Span Tent Structure and Aluminium Alloy Square Pagoda & Summer Gazebo.
Liri PG Series:
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| PG | 10m/32.8' | 5m/16.4' | 4m | 7.16m | 204x120x4mm(4-channel) |
| PG | 12m/39.4' | 5m/16.4' | 4m | 7.4m | 204x120x4mm(4-channel) |
| PG | 15m/49.2' | 5m/16.4' | 4m | 8.75m | 204x120x4mm(4-channel) |
| PG | 18m/59' | 5m/16.4' | 4m | 9.15m | 204x120x4mm(4-channel) |
| PG | 20m/65.6' | 5m/16.4' | 4m | 9.42m | 204x120x4mm(4-channel) |
| PG | 25m/82' | 5m/16.4' | 4m | 11.72m | 256x121x5mm(4-channel) |
| PG | 30m/98.4' | 5m/16.4' | 4m | 13.2m | 256x121x5mm(4-channel) |
| PG | 40m/131.2' | 5m/16.4' | 4m | 15.6m | 300x120x5mm(4-channel) |
| PG | 50m/164' | 5m/16.4' | 4m | 16m | 400x120x7mm(4-channel) |
| PG | 60m/197' | 5m/16.4' | 4m | 18m | 400x120x7mm(4-channel) |
| The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size is available. | |||||
- If it is concrete ground , pls use the expandable bolts
- If it is termac grond or grass ground or sand ground or other soft gronds , pls use the steel anchors .
- If it is marble or tile ground or other kind indestructible grounds , pls use the weight plates system
- If you will make the concrete bases to fix the tent , pls use the embeded bolts M 24 x 500 mm
![50m Width Aluminum Frame Outdoor Event Tents For Restaurant CFM IFAI]()
Optional Accessories
- Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
- Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
- Adjustable flooring system, can fix on the uneven land
Packaging:
- aluminum frame packed in membrane film
- hardware packed in solid carton box
- roof and sidewall in professional PVC carry bag
Liri Tent series
Tent Roof Type |
Span Width | Bay Distance | Eave Height |
| "A" Shape | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Domelike | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve Shape | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Cube Structure | 10m~30m | 5m | 5m |
Payment and shipping time for the Large Aluminium 50x60m Movable Polygon Marquee
At present we accept payment made by cash, bank transfer, Western Union and L/C.
At least 30% of the invoice value as deposit, the balance shall be cleared before delivery .
The delivery time shall be 25 working days after receipt of the deposit .
